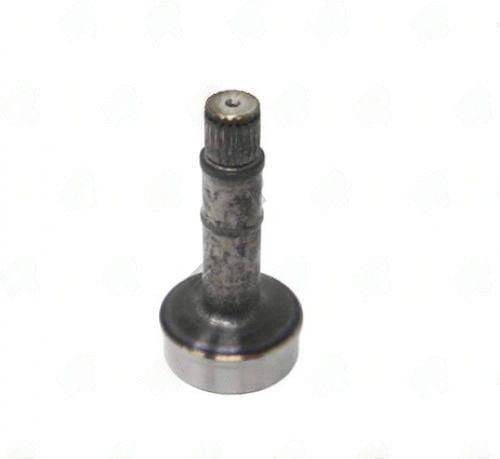

1442-210 – Stub Midship Shaft – 21 X 0.890 Splines – Butt Dia 2.375″ – Tube Dia Wall 2.500X0.065
$70.93
1 in stock
14
People watching this product now!
Description
1442-210 UDS splined midship shaft. Splines 21 X 0.890, fits 2.500 x 0.065″ tube, ” bearing journal. Verify slip yoke splines match before assembly.
Full Description
1442-210 UDS Splined Midship Tube Shaft
The 1442-210 is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 21 X 0.890 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a 2.500 x 0.065" tube with a butt diameter of 2.375 inches at the weld joint. The end-to-weld dimension is 4.500 inches.
Specifications
- Part Number: 1442-210
- Brand: UDS
- Butt dia: 2.375
- End to weld: 4.500
- Splines count dia: 21 X 0.890
- Splines length: 0.985
- Tube dia: 2.500
- Tube wall: 0.065"
- Style: CVJ
Fitment & Installation Notes
Verify the slip yoke splines match the 21 X 0.890 specification on the 1442-210 before assembly. The tube OD must be 2.500 to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Stub & Midship Shafts for two-piece driveshaft applications.
Additional information
| Butt dia | 2.375 |
|---|---|
| End to weld | 4.500 |
| Partn number | 1442-210 |
| Splines count dia | 21 X 0.890 |
| Splines length | 0.985 |
| Tube dia | 2.500 |
| Tube wall | 0.065″ |
| Style | CVJ |
