1442-20 – Stub & Midship Shaft – 16 X 1.063 Splines – Butt Dia 1.875″ – Tube Dia 2.000
$48.54
1 in stock
16
People watching this product now!
Description
1442-20 UDS splined midship shaft. Splines 16 X 1.063, fits 2.000 x 0.065″ tube, ” bearing journal. Verify slip yoke splines match before assembly.
Full Description

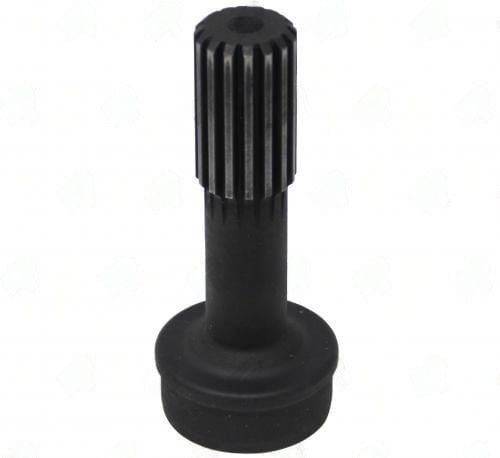

1442-20 UDS Splined Midship Tube Shaft
The 1442-20 is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 16 X 1.063 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a 2.000 x 0.065" tube with a butt diameter of 1.875 inches at the weld joint. The end-to-weld dimension is 4.125 inches.
Specifications
- Part Number: 1442-20
- Brand: UDS
- Butt dia: 1.875
- End to weld: 4.125
- Splines count dia: 16 X 1.063
- Splines length: 2.000
- Tube dia: 2.000
- Tube wall: 0.065"
- Style: Slip
Fitment & Installation Notes
Verify the slip yoke splines match the 16 X 1.063 specification on the 1442-20 before assembly. The tube OD must be 2.000 to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Stub & Midship Shafts for two-piece driveshaft applications.
Additional information
| Butt dia | 1.875 |
|---|---|
| End to weld | 4.125 |
| Partn number | 1442-20 |
| Splines count dia | 16 X 1.063 |
| Splines length | 2.000 |
| Tube dia | 2.000 |
| Tube wall | 0.065″ |
| Style | Slip |
