1442-17 – Stub & Midship Shaft – 16 X 1.063 Splines – Butt Dia 1.625″ – Tube Dia Wall 1.750X0.065
$88.69
20
People watching this product now!
Description

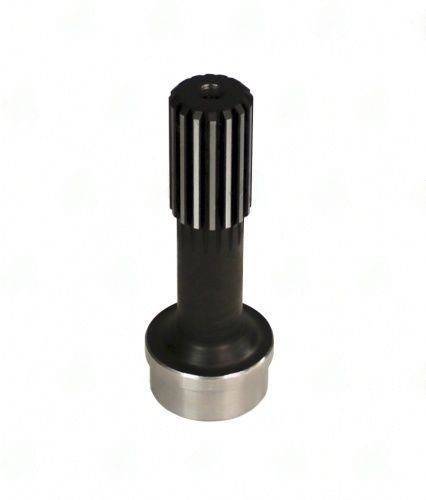

Midshaft stub 1442-17. 16 X 1.063 spline | 1.770″ spline length | 1.625″ butt dia | 4.125″ end-to-weld | fits 1.750″ tube. British Imports. Solid butt weld-in design.
Full Description
A bent or cracked midshaft stub causes driveline vibration that looks like a u-joint problem but isn't. The 1442-17 is the correct replacement for the center section.
1442-17 Midshaft Stub -- Spline & Tube Dimensions
Specs on the 1442-17 midshaft stub: 16 X 1.063 spline | 1.770" spline length | 1.625" butt dia | 4.125" end-to-weld | fits 1.750" tube. British Imports.
End-to-weld dimension determines how much of your driveshaft's total length is consumed by this stub section. Factor it into your overall shaft length calculation.
Key Features
- Spline: 16 X 1.063 -- verify against transmission or T-case output shaft
- Spline length: 1.770" -- full engagement required
- Butt dia: 1.625" -- seats inside driveshaft tube, must match tube ID
- End-to-weld: 4.125" -- length consumed in total driveshaft assembly
- Tube compatibility: 1.750" -- designed for this tube specification
- Note: British Imports
Specifications
- SKU: 1442-17
- Brand: UDS
- Spline Count x Dia: 16 X 1.063
- Spline Length: 1.770"
- Butt Dia: 1.625"
- End to Weld: 4.125"
- Tube Fit: 1.750"
- Notes: British Imports
Additional information
| Butt dia |
1.625 |
|---|---|
| End to weld |
4.125 |
| Notes |
British Imports ,used with: 1403-16 |
| Partn number |
1442-17 |
| Splines count dia |
16 X 1.063 |
| Splines length |
1.770 |
| Tube dia |
1.750" |
| Tube wall |
0.065" |
| Style |
Slip |
