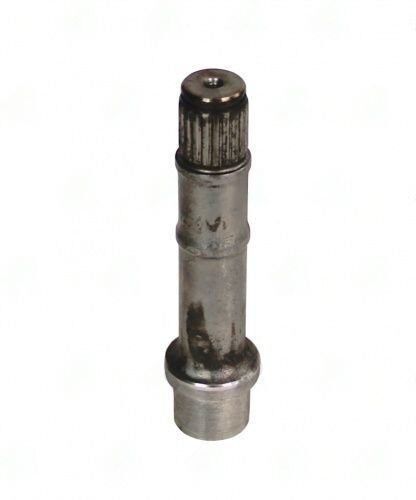

1442-125 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 1.000″ – End To Weld 4.500
$62.61
14 People watching this product now!
Description
1442-125 Midshaft Stub — 20 X 0.853 spline | 739″ spline length | 1.000″ butt dia | 4.500″ end-to-weld | fits 1.250 tube. Proven two-piece driveshaft center section. Verify spline and tube specs.
Full Description
The 1442-125 midshaft stub is the center section of a two-piece driveshaft — it carries the center support bearing and bridges the front and rear shaft assemblies. Spline count, spline diameter, and butt diameter are all spec-specific. The 1442-125 midshaft stub won't fit a different tube OD or a different output shaft spline, and substituting a close-but-not-exact part will produce vibration that traces directly back to this component.
1442-125 Midshaft Stub — Spline & Tube Dimensions
The 1442-125 midshaft stub specs: 20 X 0.853 spline | 739" spline length | 1.000" butt dia | 4.500" end-to-weld | fits 1.250 tube. Used with 1452-8601 CVJ Kit. The butt diameter determines how the stub seats in the driveshaft tube — too loose and the weld joint runs off-center. Spline length determines engagement depth on the output shaft; short engagement under high torque loads damages the shaft splines before the stub shows any sign of wear.
When replacing a midshaft stub, measure both the tube ID and the output shaft spline count before ordering. Check runout on the new 1442-125 midshaft stub before welding — a stub with more than 0.005" runout will never balance correctly regardless of how many weights you add.
Key Features
- Spline: 20 X 0.853 — verify against output shaft
- Spline length: 739" — full engagement required under load
- Butt dia: 1.000" — must seat concentrically in driveshaft tube
- End-to-weld: 4.500" — factors into total shaft length
- Tube fit: 1.250 — designed for this tube specification
- Bearing dia: 1.181" — matches center support bearing inner race
- Brand: UDS
- Note: Used with 1452-8601 CVJ Kit
Specifications
- SKU: 1442-125
- Brand: UDS
- Spline: 20 X 0.853
- Spline Length: 739"
- Butt Dia: 1.000"
- End to Weld: 4.500"
- Tube Fit: 1.250
- Bearing Dia: 1.181"
- Notes: Used with 1452-8601 CVJ Kit
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 1.000 |
| End to weld | 4.500 |
| Notes | Used with 1452-8601 CVJ Kit |
| Partn number | 1442-125 |
| Splines count dia | 20 X 0.853 |
| Splines length | 739 |
| Tube dia | 1.250 |
| Tube wall | 0.120 |
| Style | CVJ |
