1340-21 – Stub & Midship Shaft – 20 X 1.310 Splines – Butt Dia 2.435″ – Tube Dia Wall 2.560×0.065
$77.17
12 People watching this product now!
Description

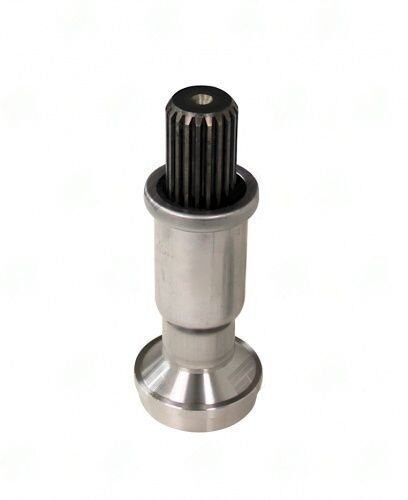

1340-21 midshaft stub. 20 X 1.310 spline | 1.880″ spline length | 2.435″ butt dia | 6.375″ end-to-weld | fits 2.560 tube. Verify spline count and butt diameter — solid tube-fit construction.
Full Description
Midshaft stubs are specific: spline count, spline diameter, butt diameter, and tube fit all have to align. The 1340-21 is dimensioned for one application.
1340-21 Stub Shaft Specifications
The 1340-21 stub shaft -- 20 X 1.310 spline | 1.880" spline length | 2.435" butt dia | 6.375" end-to-weld | fits 2.560 tube. TOYOTA.
Spline length determines how much engagement you have on the output shaft. Too short and you're running the shaft on the last few splines -- that's how output shafts get damaged.
Key Features
- Spline: 20 X 1.310 -- verify against transmission or T-case output shaft
- Spline length: 1.880" -- full engagement required
- Butt dia: 2.435" -- seats inside driveshaft tube, must match tube ID
- End-to-weld: 6.375" -- length consumed in total driveshaft assembly
- Tube compatibility: 2.560 -- designed for this tube specification
- Note: TOYOTA
Specifications
- SKU: 1340-21
- Brand: UDS
- Spline Count x Dia: 20 X 1.310
- Spline Length: 1.880"
- Butt Dia: 2.435"
- End to Weld: 6.375"
- Tube Fit: 2.560
- Notes: TOYOTA
Additional information
| Butt dia | 2.435 |
|---|---|
| End to weld | 6.375 |
| Notes | TOYOTA |
| Partn number | 1340-21 |
| Splines count dia | 20 X 1.310 |
| Splines length | 1.880 |
| Tube dia | 2.560 |
| Tube wall | 0.065" |
| Style | Slip |
