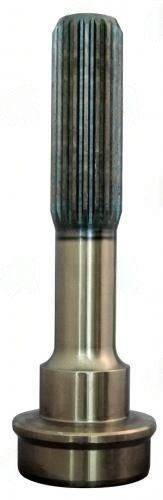

1340-20 – Stub & Midship Shaft – 20 X 1.310 Splines – Butt Dia 2.435″ – End To Weld 7.500
$63.12
12 People watching this product now!
Description
1340-20 stub shaft — two-piece driveshaft center section. 20 X 1.310 spline | 1.765″ spline length | 2.435″ butt dia | 7.500″ end-to-weld | fits 2.560 tube. Spline and tube spec must match.
Full Description
The 1340-20 stub shaft carries the center bearing race and connects the front section to the rear. Spline engagement on the transfer case or transmission end has to be exact.
1340-20 Stub Shaft Specifications
1340-20 midshaft stub -- 20 X 1.310 spline | 1.765" spline length | 2.435" butt dia | 7.500" end-to-weld | fits 2.560 tube. TOYOTA.
Bearing diameter determines which center support bearing race this stub is compatible with -- if you're replacing the stub, verify the bearing ID matches your CSB.
Key Features
- Spline: 20 X 1.310 -- verify against transmission or T-case output shaft
- Spline length: 1.765" -- full engagement required
- Butt dia: 2.435" -- seats inside driveshaft tube, must match tube ID
- End-to-weld: 7.500" -- length consumed in total driveshaft assembly
- Tube compatibility: 2.560 -- designed for this tube specification
- Note: TOYOTA
Specifications
- SKU: 1340-20
- Brand: UDS
- Spline Count x Dia: 20 X 1.310
- Spline Length: 1.765"
- Butt Dia: 2.435"
- End to Weld: 7.500"
- Tube Fit: 2.560
- Notes: TOYOTA
Additional information
| Butt dia | 2.435 |
|---|---|
| End to weld | 7.500 |
| Notes | TOYOTA |
| Partn number | 1340-20 |
| Splines count dia | 20 X 1.310 |
| Splines length | 1.765 |
| Tube dia | 2.560 |
| Tube wall | 0.065" |
| Style | Slip |
