1254-681 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.375″ – End To Weld 6.625
$89.09
20 People watching this product now!
Description

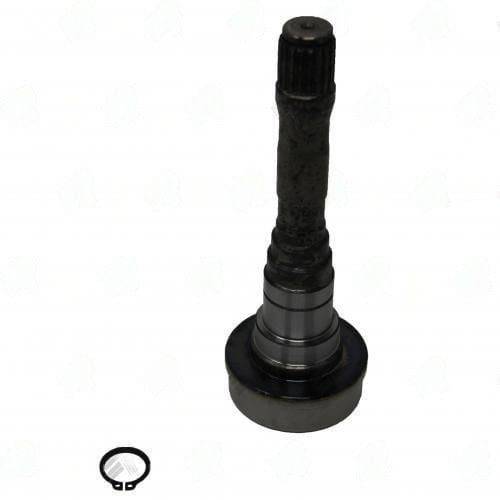

1254-681 stub shaft — two-piece driveshaft center section. 19 X 0.850 spline | 775″ spline length | 2.375″ butt dia | 6.625″ end-to-weld | fits 2.500 tube. Spline and tube spec must match.
Full Description
The 1254-681 stub shaft carries the center bearing race and connects the front section to the rear. Spline engagement on the transfer case or transmission end has to be exact.
1254-681 Midshaft Stub -- Spline & Tube Dimensions
The 1254-681 midshaft stub specs: 19 X 0.850 spline | 775" spline length | 2.375" butt dia | 6.625" end-to-weld | fits 2.500 tube. Note: This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682. Verify spline count and butt diameter against your existing shaft.
The butt diameter must match the tube ID you're fitting it to -- a loose butt joint will introduce runout when welded.
Key Features
- Spline: 19 X 0.850 -- verify against transmission or T-case output shaft
- Spline length: 775" -- full engagement required
- Butt dia: 2.375" -- seats inside driveshaft tube, must match tube ID
- End-to-weld: 6.625" -- length consumed in total driveshaft assembly
- Tube compatibility: 2.500 -- designed for this tube specification
- Bearing dia: 1.181" -- matches center support bearing inner race
- Note: This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682
Specifications
- SKU: 1254-681
- Brand: UDS
- Spline Count x Dia: 19 X 0.850
- Spline Length: 775"
- Butt Dia: 2.375"
- End to Weld: 6.625"
- Tube Fit: 2.500
- Bearing Dia: 1.181"
- Notes: This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.375 |
| End to weld | 6.625 |
| Notes | This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 |
| Partn number | 1254-681 |
| Splines count dia | 19 X 0.850 |
| Splines length | 775 |
| Tube dia | 2.500 |
| Style | CVJ |
| Tube wall | 0.065" |
