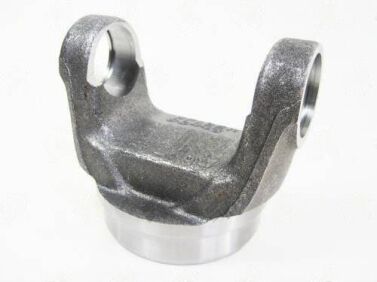

3-28-57-1 Weld Tube Yoke 1350 Ser’ , Fits: 2.750 x 0.083 , Butt Dia: 2.594 Inch CL To Weld: 2 Inch SOLID BUTT
$24.79
39 in stock
12 People watching this product now!
Description
3-28-57-1 Weld Yoke — Steel, 1350 series, fits 2.750X0.083 tube | 2.594″ butt dia | 2.000″” center-to-weld. Genuine weld-on replacement. Match tube OD before ordering.
Full Description
Building or rebuilding a 1350 series driveshaft means getting the weld yoke right first. The 3-28-57-1 weld yoke is machined for one tube diameter and one series — those two specs are non-negotiable. Get the butt diameter wrong and the weld joint is already compromised before you strike the arc.
3-28-57-1 Weld Yoke — Tube Fit & Steel Specs
The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3-28-57-1 weld yoke specs: fits 2.750X0.083 tube | 2.594" butt dia | 2.000"" center-to-weld. SOLID BUTT - CAN BE TURN DOWN TO 2.000 X 0.125. Steel construction — DOM-compatible, full-penetration weld ready, standard for high-torque driveshaft applications. Center-to-weld dimension is critical for total shaft length calculations — it's the distance consumed by this yoke on that end of the tube.
Measure your tube OD before cutting and welding the 3-28-57-1 weld yoke. Tack it in place first, check runout is within 0.005" before committing to full weld. A slight off-angle tack that gets welded solid will show up as vibration at 50+ mph that no balancer can fully correct.
Key Features
- Series: 1350 — 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
- Tube fit: 2.750X0.083 — butt diameter is machined specifically for this OD
- Butt dia: 2.594" — must match tube OD precisely for a centered weld joint
- Center-to-weld: 2.000"" — factors into total shaft length calculation
- Steel — DOM-compatible, full-penetration weld, standard drivetrain spec
- Brand: UDS
- Note: SOLID BUTT - CAN BE TURN DOWN TO 2.000 X 0.125
Specifications
- SKU: 3-28-57-1
- Brand: UDS
- Series: 1350
- Material: Steel
- Tube Fit: 2.750X0.083
- Butt Dia: 2.594"
- Center to Weld: 2.000""
- Notes: SOLID BUTT - CAN BE TURN DOWN TO 2.000 X 0.125
Additional information
| Butt dia | 2.594 |
|---|---|
| Center u j to weld | 2.000" |
| Material | STEEL |
| Partn number | 3-28-57-1 |
| Series | 1350 |
| Tube dia wall | 2.750X0.083 |
| Brand | UDS |
| Notes | SOLID BUTT – CAN BE TURN DOWN TO 2.000 X 0.125 |
