2826-4120 – Tri & Quad Prongs – Bolt Circle Dia 120MM – Bolt Hole Dia 12MM – Butt Dia 2.344

2826-4120 Mercedes Quad Prong – 120MM Bolt Circle – 2.344" Butt Dia – 1.500" Face to Weld

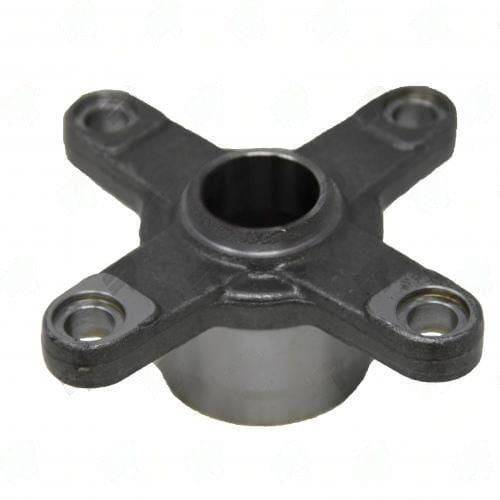

The 2826-4120 is a quad prong flange yoke for Mercedes applications with a 120MM bolt circle diameter. The bolt holes are 12MM clearance with an 18mm pilot diameter. The butt diameter measures 2.344" and the face-to-weld length is 1.500". The nose bushing diameter is 31MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 2826-4120
• Application: Mercedes (Quad Prong)
• Bolt Circle Dia: 120MM
• Bolt Hole Dia: 12MM
• Bolt Hole Pilot Dia: 18mm
• Nose Bushing Dia: 31MM
• Butt Dia: 2.344"
• Face to Weld: 1.500"
• Tube Dia x Wall: 2.500" x 0.083"

When fitting the 2826-4120 on a Mercedes application, confirm the driveshaft tube is 2.500" OD with 0.083" wall before welding. This is a quad prong configuration — the four-bolt flange arrangement must match the Mercedes companion flange. The 120MM bolt circle with 12MM clearance holes and 18mm pilot must be verified against the specific Mercedes model's flange. The quad prong design (four flanges vs three on tri prong variants) is a Mercedes-specific configuration. The 2826-4120 uses a 120MM bolt circle, which is larger than the 90MM, 105MM, and 110MM variants in the 2826 series. Confirm the Mercedes application requires the quad prong configuration and the 120MM bolt circle before ordering.
