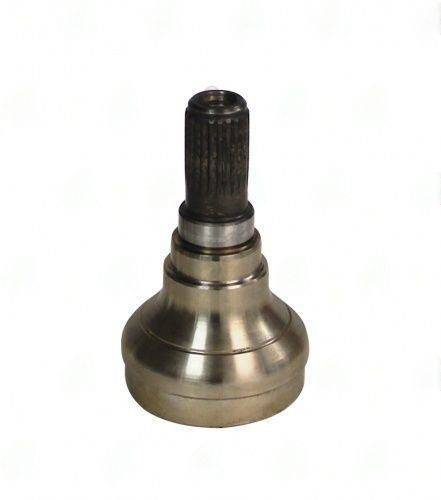

3053-233 – Stub Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.875″ – End To Weld 4.325
$95.41
1 in stock
13 People watching this product now!
Description
3053-233 stub midship shaft — fixed style. Bearing dia 1.181″. Butt 2.875″. Splines: 22/23 x 0.990″. End-to-weld: 4.325″. Tube: 3.000″ x 0.065″.
Full Description
The 3053-233 is a fixed-style stub midship shaft, meaning the shaft does not incorporate a slip joint at the spline end. Fixed stub shafts pair with a separate slip yoke at the midship yoke interface. The 22/23 spline designation (a split count similar to the fractional spline notation seen on some slip yokes) mates with a specific midship yoke bore.
The catalog note specifies this shaft is used with midship yoke 1404-231 or 3004-231. These yoke part numbers define the correct mating component. Using an incorrect midship yoke risks misalignment, improper slip engagement, or joint failure under load.
- Part Number: 3053-233
- Style: Fixed
- Bearing Diameter: 1.181"
- Butt Diameter: 2.875"
- Tube OD: 3.000"
- Tube Wall: 0.065"
- End-to-Weld: 4.325"
- Spline: 22/23 x 0.990"
- Spline Length: 1.420"
- Mating Yoke: 1404-231 or 3004-231
The 1.181" bearing diameter fits the center support bracket bore. The 4.325" end-to-weld is the distance from the bearing eye center to the tube butt face. Verify this against your shaft layout. The 3.000" OD tube with 0.065" wall is a lighter-wall specification. For heavy-duty rebuilds, consider whether 0.083" wall is more appropriate for your torque loading.
See all stub and midship shaft components.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.875 |
| End to weld | 4.325 |
| Notes | Use with 1404-231 or 3004-231 midship yoke |
| Partn number | 3053-233 |
| Splines count dia | 22/23 X 0.990 |
| Splines length | 1.420 |
| Tube dia | 3.000 |
| Tube wall | 0.065″ |
| Style | FIXED |
