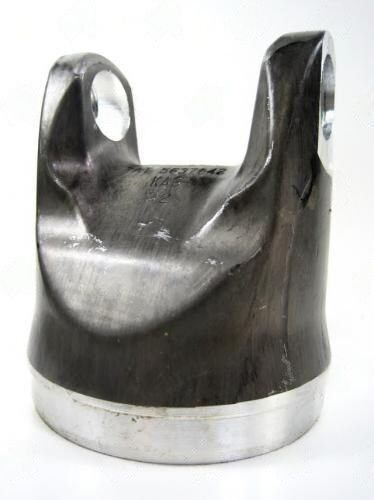

4126-501A – Weld Yokes – 1410 Series – Butt Dia 4.888″ – Tube Dia Wall 5.000X0.065
$127.95
12 People watching this product now!
Description
4126-501A Weld Yoke — Aluminum, 1410 series, fits 5.000X0.065 tube | 4.888″ butt dia | 4.109″ center-to-weld. Complete weld-on replacement. Match tube OD before ordering.
Full Description
The 4126-501A weld yoke is a aluminum T6061 weld-on yoke for 1410 series driveshaft applications. It attaches permanently to the tube via weld and carries the u-joint cross at the outboard end of the shaft. Center-to-weld dimension and butt diameter are the two numbers that matter most here.
4126-501A Weld Yoke — Tube Fit & Aluminum Specs
The 1410 series covers HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles. The 4126-501A weld yoke specs: fits 5.000X0.065 tube | 4.888" butt dia | 4.109" center-to-weld. Aluminum T6061 — roughly 60% lighter than steel equivalent, corrosion resistant, correct for high-RPM builds where rotating mass matters. Center-to-weld dimension is critical for total shaft length calculations — it's the distance consumed by this yoke on that end of the tube.
Measure your tube OD before cutting and welding the 4126-501A weld yoke. Tack it in place first, check runout is within 0.005" before committing to full weld. A slight off-angle tack that gets welded solid will show up as vibration at 50+ mph that no balancer can fully correct.
Key Features
- Series: 1410 — HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Tube fit: 5.000X0.065 — butt diameter is machined specifically for this OD
- Butt dia: 4.888" — must match tube OD precisely for a centered weld joint
- Center-to-weld: 4.109" — factors into total shaft length calculation
- Aluminum T6061 — lightweight, corrosion resistant, reduces rotating inertia
- Brand: UDS
Specifications
- SKU: 4126-501A
- Brand: UDS
- Series: 1410
- Material: Aluminum
- Tube Fit: 5.000X0.065
- Butt Dia: 4.888"
- Center to Weld: 4.109"
Additional information
| Butt dia | 4.888 |
|---|---|
| Center u j to weld | 4.109 |
| Material | ALUMINUM |
| Partn number | 4126-501A |
| Series | 1410 |
| Tube dia wall | 5.000X0.065 |
| Brand | UDS |
