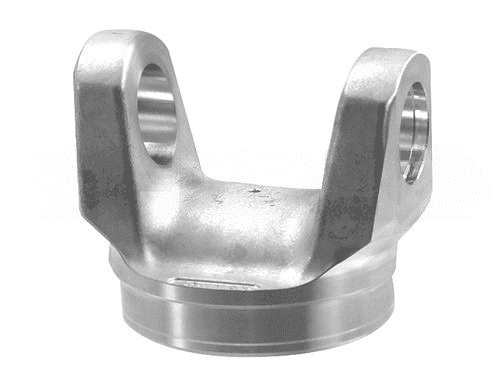

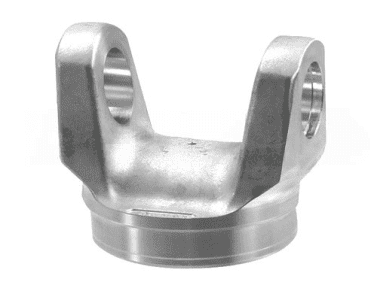

Aluminum Weld Yoke 1350 Series Fits 4.000 X 0.125

Weld yokes don't wear in the traditional sense -- they crack or they get damaged in accidents. The ATY1350-400 weld yoke is the straight swap for a cracked or damaged tube-end yoke.

ATY1350-400 Weld Yoke -- 1350 Series Aluminum Tube Specs

The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds.

Dimensions on the ATY1350-400 weld yoke: fits 4.000X0.125 tube | 3.757" butt dia | 2.375" center-to-weld. 6061-T6 Aluminum. The center-to-weld measurement is critical for calculating your driveshaft's compressed and extended working length.

Aluminum T6061 construction -- lighter rotating mass reduces driveline stress.

Key Features

• Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
• Tube fit: 4.000X0.125 -- butt diameter machined to this tube OD only
• Butt diameter: 3.757" -- slides over tube OD for weld prep
• Center-to-weld: 2.375" -- factors into overall driveshaft length calculation
• Aluminum T6061 -- roughly 60% lighter than steel equivalent, corrosion resistant
• Note: 6061-T6 Aluminum

Specifications

• SKU: ATY1350-400
• Brand: UDS
• Series: 1350
• Material: Aluminum
• Tube Dia x Wall: 4.000X0.125
• Butt Dia: 3.757"
• Center UJ to Weld: 2.375"
• Notes: 6061-T6 Aluminum
