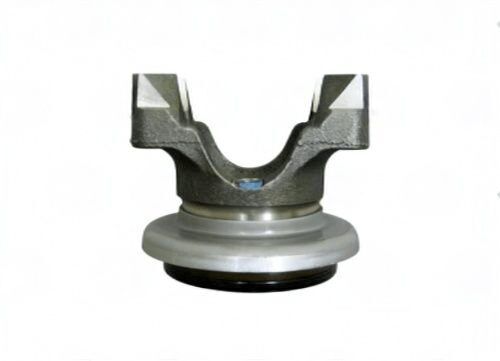

4104-04 – End Yoke – 1410 Series – 1.59″ Splines Dia – 30 Spline
$102.45
0 in stock
10
People watching this product now!
Description
4104-04 End Yoke — 1410 series, 1.59 x 30 spline | 2.37″ hub dia | 3.75″ CJ-to-end | 1.63 bore. Proven replacement, spline-specific fit. Count splines before ordering.
Full Description
The 4104-04 end yoke slides onto the axle or transfer case output shaft and holds the u-joint cross at the end of the driveshaft. It's a spline-specific fit for 1410 series applications — the spline count determines engagement, the hub diameter determines outer clearance, and the series determines which u-joint cross the ears accept.
4104-04 End Yoke — Spline Specs & 1410 Series Fitment
The 1410 series covers HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles. The 4104-04 end yoke specs: 1.59 x 30 spline | 2.37" hub dia | 3.75" CJ-to-end | 1.63 bore. GM 10.5 COMES WITH NEW OINION SEAL 14 BOLT GM. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 4104-04 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 1410 — HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Spline: 1.59 x 30 — must match output shaft exactly
- Hub dia: 2.37" — outer dimension, verify clearance
- CJ-to-end: 3.75" — positions u-joint relative to axle flange
- Bore: 1.63
- Style: BS
- Brand: UDS
- Note: GM 10.5 COMES WITH NEW OINION SEAL 14 BOLT GM
Specifications
- SKU: 4104-04
- Brand: UDS
- Series: 1410
- Spline Dia: 1.59
- Spline Count: 30
- Hub Dia: 2.37"
- CJ to End: 3.75"
- Through Hole: 1.63
- Style: BS
- Notes: GM 10.5 COMES WITH NEW OINION SEAL 14 BOLT GM
Additional information
| Cj to end | 3.75 |
|---|---|
| Hub dia | 2.37 |
| Notes | GM 10.5 COMES WITH NEW OINION SEAL 14 BOLT GM |
| Partn number | 4104-04 |
| Series | 1410 |
| Splines count | 30 |
| Splines dia | 1.59 |
| Style | BS |
| Through hole | 1.63 |
