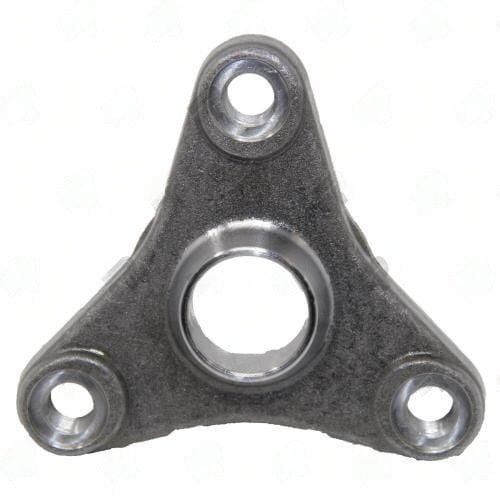

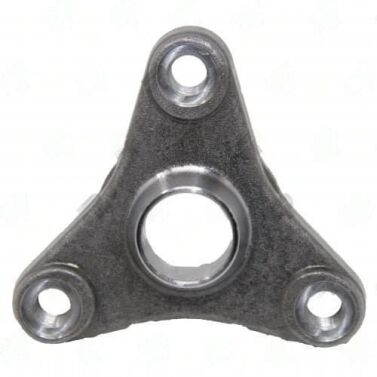

3626-112 – Tri & Quad Prongs – Bolt Circle Dia 1100MM – Butt Dia 2.344″ – Face To Weld 1.625
$76.83
39 in stock
17
People watching this product now!
Description
3626-112 Tri Prong — 1100MM bolt circle | THRD 14×1.5 bolt holes | 2.344″ butt dia | 1.625″” face-to-weld | fits 2.500X0.083 tube. Proven metric weld-in driveshaft connector.
Full Description
The 3626-112 tri prong is the weld-in metric driveshaft connector used on European and import vehicles that use a 3-bolt or 4-bolt prong flange connection instead of a standard yoke. The 3626-112 tri prong welds onto the driveshaft tube and bolts to the differential flange — bolt circle diameter and butt diameter are the two critical specs, both in metric dimensions.
3626-112 Tri Prong — Metric Bolt Circle & Tube Dimensions
The 3626-112 tri prong specs: 1100MM bolt circle | THRD 14x1.5 bolt holes | 2.344" butt dia | 1.625"" face-to-weld | fits 2.500X0.083 tube. Bolt circle is metric — measure in millimeters against your diff flange, not inches. Butt diameter must match your tube OD for a centered weld joint. Face-to-weld determines how much of the total shaft length this connector consumes.
Weld prep on the 3626-112 tri prong: butt it squarely against the tube end, check alignment before tacking, verify runout before final weld. Metric bolt patterns on European flanges vary across manufacturers and model years — measure your actual diff flange, don't assume from the vehicle spec sheet.
Key Features
- Bolt circle: 1100MM — metric, must match diff flange exactly
- Bolt hole dia: THRD 14x1.5 — metric hole dimension
- Butt dia: 2.344" — must match tube OD for centered weld
- Face-to-weld: 1.625"" — length consumed in shaft assembly
- Nose bushing dia: 32MM — centers prong in flange bore
- Tube compatibility: 2.500X0.083
Specifications
- SKU: 3626-112
- Brand: UDS
- Bolt Circle: 1100MM
- Bolt Hole Dia: THRD 14x1.5
- Butt Dia: 2.344"
- Face to Weld: 1.625""
- Nose Bushing: 32MM
- Tube Fit: 2.500X0.083
Additional information
| Bolt circle dia |
1100MM |
|---|---|
| Bolt hole dia |
THRD 14×1.5 |
| Butt dia |
2.344 |
| Face to weld |
1.625" |
| Nose bushing dia |
32MM |
| Partn number |
3626-112 |
| Tube dia wall |
2.500X0.083 |
| Bolt hole pilot dia |
21 mm |
