3626-111 – Tri & Quad Prongs – Bolt Circle Dia 1100MM – Butt Dia 2.344″ – Face To Weld 1.625

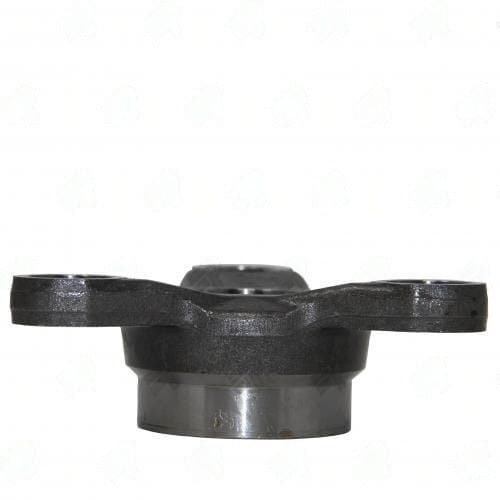

3626-111 Tri Prong – 1100MM Bolt Circle – 2.344" Butt Dia – THRD 12x1.75 Bolt Hole

The 3626-111 is a tri prong flange yoke with a 1100MM bolt circle diameter. The bolt holes are threaded at 12x1.75. The pilot diameter is 32mm. The butt diameter measures 2.344" and the face-to-weld length is 1.625". The nose bushing diameter is 32MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 3626-111
• Bolt Circle Dia: 1100MM
• Bolt Hole Dia: THRD 12x1.75
• Bolt Hole Pilot Dia: 32mm
• Nose Bushing Dia: 32MM
• Butt Dia: 2.344"
• Face to Weld: 1.625"
• Tube Dia x Wall: 2.500" x 0.083"

When fitting the 3626-111, confirm the driveshaft tube is 2.500" OD with 0.083" wall before welding. The threaded 12x1.75 bolt holes require M12 fasteners at 1.75mm pitch — confirm thread pitch before sourcing hardware. The 32mm pilot diameter must be checked against the companion flange bore. In the 1100MM bolt circle group, the 3626-111 uses THRD 12x1.75 holes versus the 3626-112 (THRD 14x1.5) and 3626-110 (12MM clearance). The 32mm pilot diameter on the 3626-111 is larger than the 21mm on the 3626-112, which is an additional distinguishing dimension to verify against the companion flange.
