3626-110 – Tri & Quad Prongs – Bolt Circle Dia 1100MM – Butt Dia 2.344″ – Face To Weld 1.625

3626-110 Pontiac GTO Tri Prong – 1100MM Bolt Circle – 2.344" Butt Dia – 12MM Bolt Hole

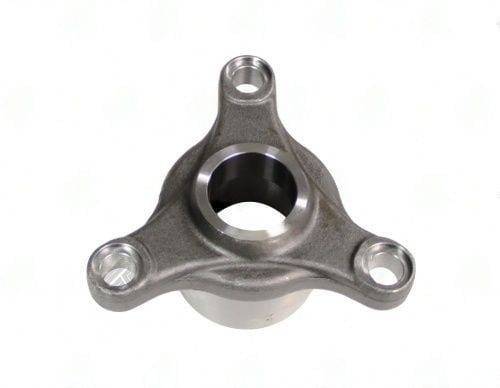

The 3626-110 is a tri prong flange yoke for Pontiac GTO applications with a 1100MM bolt circle diameter. The bolt holes are 12MM clearance with a 32mm pilot diameter. The butt diameter measures 2.344" and the face-to-weld length is 1.625". The nose bushing diameter is 32MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 3626-110
• Application: Pontiac GTO
• Bolt Circle Dia: 1100MM
• Bolt Hole Dia: 12MM
• Bolt Hole Pilot Dia: 32mm
• Nose Bushing Dia: 32MM
• Butt Dia: 2.344"
• Face to Weld: 1.625"
• Tube Dia x Wall: 2.500" x 0.083"

When fitting the 3626-110 on a Pontiac GTO, confirm the driveshaft tube is 2.500" OD with 0.083" wall before welding. The 12MM clearance bolt holes and 32mm pilot diameter must be verified against the GTO differential companion flange — the 32mm pilot is a key feature distinguishing this clearance-hole variant from the threaded variants in the 1100MM bolt circle group. All three 1100MM bolt circle variants (3626-110, 3626-111, 3626-112) share the same 2.344" butt diameter and 1.625" face-to-weld length. The 3626-110 uses 12MM clearance holes versus the threaded options in the -111 and -112. Confirm whether the Pontiac GTO companion flange requires clearance or threaded bolt holes before ordering.
