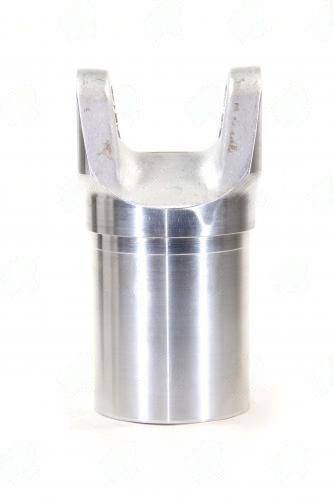

3526-35CF – Weld Yokes – 1350 Series – Butt Dia 3.500″ – Tube Dia Wall 3.790X0.145
$194.52
10 People watching this product now!
Description
3526-35CF weld yoke — Aluminum, 1350 series. fits 3.790X0.145 tube | 3.500″” butt dia | 2.250″” center-to-weld. Verify tube OD before ordering.
Full Description
A weld yoke that doesn't fit the tube cleanly will produce an out-of-round weld joint. The 3526-35CF weld yoke is bored to one tube size -- no filler gap, no slop.
3526-35CF Weld Yoke -- Dimensions & Fitment
The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds. 3526-35CF weld yoke -- fits 3.790X0.145 tube | 3.500"" butt dia | 2.250"" center-to-weld. Additional: USED FOR CARBON FIBER APPLICATIONS.
Aluminum T6061 construction -- lighter rotating mass reduces driveline stress. Tack in place before final weld -- confirm runout is within 0.005" before committing to full weld.
Key Features
- Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
- Tube fit: 3.790X0.145 -- butt diameter machined to this tube OD only
- Butt diameter: 3.500"" -- slides over tube OD for weld prep
- Center-to-weld: 2.250"" -- factors into overall driveshaft length calculation
- Aluminum T6061 -- roughly 60% lighter than steel equivalent, corrosion resistant
- Note: USED FOR CARBON FIBER APPLICATIONS
Specifications
- SKU: 3526-35CF
- Brand: UDS
- Series: 1350
- Material: Aluminum
- Tube Dia x Wall: 3.790X0.145
- Butt Dia: 3.500""
- Center UJ to Weld: 2.250""
- Notes: USED FOR CARBON FIBER APPLICATIONS
Additional information
| Butt dia | 3.500" |
|---|---|
| Center u j to weld | 2.250" |
| Material | ALUMINUM |
| Notes | USED FOR CARBON FIBER APPLICATIONS |
| Partn number | 3526-35CF |
| Series | 1350 |
| Tube dia wall | 3.790X0.145 |
| Brand | UDS |
