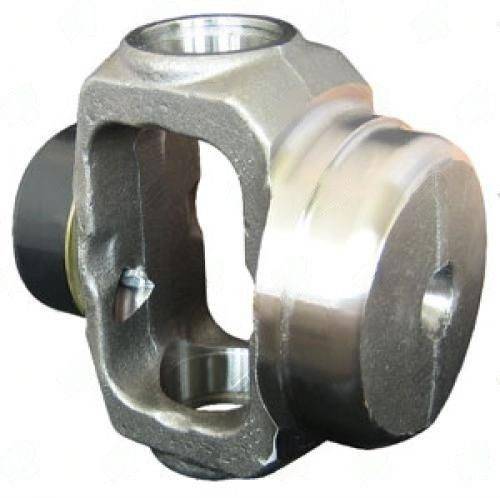

3526-28 – Ball Stud Yokes – 1350 Series – Ball Stud Length Dia 0.500X0.635 – Butt Dia 2.594

Ball stud yokes combine a weld yoke and a CV centering stud in one part. The 3526-28 ball stud yoke welds to the tube and provides the stud that centers the CV head assembly.

3526-28 Ball Stud Yoke -- 1350 Series Specs

The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds. The 3526-28 ball stud yoke: fits 2.750X0.083 tube | 2.594" butt dia | 0.500X0.635 ball stud | 1.810"" center-to-weld. DUST COVER RUBBER. Tube OD must match butt diameter -- measure before cutting.

Key Features

• Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
• Tube fit: 2.750X0.083 -- butt diameter machined to this tube OD
• Butt dia: 2.594" -- slides over or butts to tube end
• Ball stud: 0.500X0.635 -- seats CV head centering socket
• Center-to-weld: 1.810"" -- affects shaft length calculation
• Note: DUST COVER RUBBER

Specifications

• SKU: 3526-28
• Brand: UDS
• Series: 1350
• Tube Fit: 2.750X0.083
• Butt Dia: 2.594"
• Ball Stud: 0.500X0.635
• Center to Weld: 1.810""
• Notes: DUST COVER RUBBER
