2-28-3257 – Ball Stud Yokes – 1330 Series – Ball Stud Length Dia 0.500X0.594 – Notes DUST COVER RUBBER

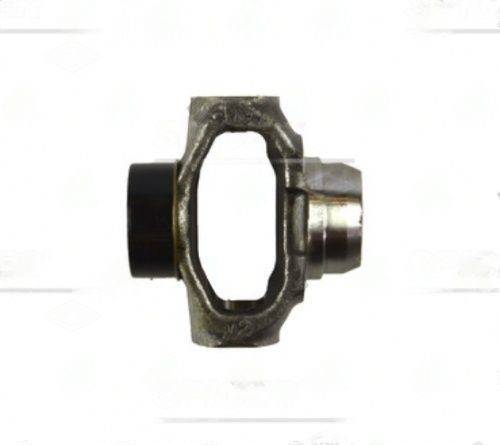

2-28-3257 SPICER 1330 Ball Stud Yoke

The 2-28-3257 is a 1330 series ball stud yoke manufactured by SPICER. A ball stud yoke is welded to a driveshaft tube on one end, and the ball stud on the opposite end engages a CV joint socket or centering ball assembly in a double-cardan (CV) driveshaft configuration. This design allows high operating angles with reduced vibration compared to a single-cardan U-joint at the same angle.

The tube specification is 2.000X0.120; the weld end seats against tube with that OD and wall combination. The butt diameter is 1.766 inches. The center-U-joint-to-weld dimension is 1.375 inches. The ball stud measures 0.500X0.594 (length x diameter). The 1330 series ranks above 1310 in torque capacity, with a 1.062-inch cap diameter, suited for 3/4-ton trucks and heavier light-duty applications. Note: DUST COVER RUBBER.

Specifications

• Part Number: 2-28-3257
• Brand: SPICER
• Series: 1330
• Ball stud length dia: 0.500X0.594
• Notes: DUST COVER RUBBER
• Tube dia wall: 2.000X0.120
• Butt dia: 1.766
• Center u j to weld: 1.375

Fitment & Installation Notes

Confirm the tube OD and wall match 2.000X0.120 before welding the 2-28-3257. The ball stud diameter must correspond to the CV centering socket on the mating component. Ball stud yokes are not interchangeable with standard weld yokes in the same application.

View the full range of Ball Stud Yokes for CV and double-cardan driveshaft applications.
