2-28-2947 Ball Stud Yoke 1310 Series , Fits Tube 2.000 x 0.120 , Butt Dia: 1.766

2-28-2947 UDS 1310 Series Ball Stud Yoke for 2.000x0.120 Tube

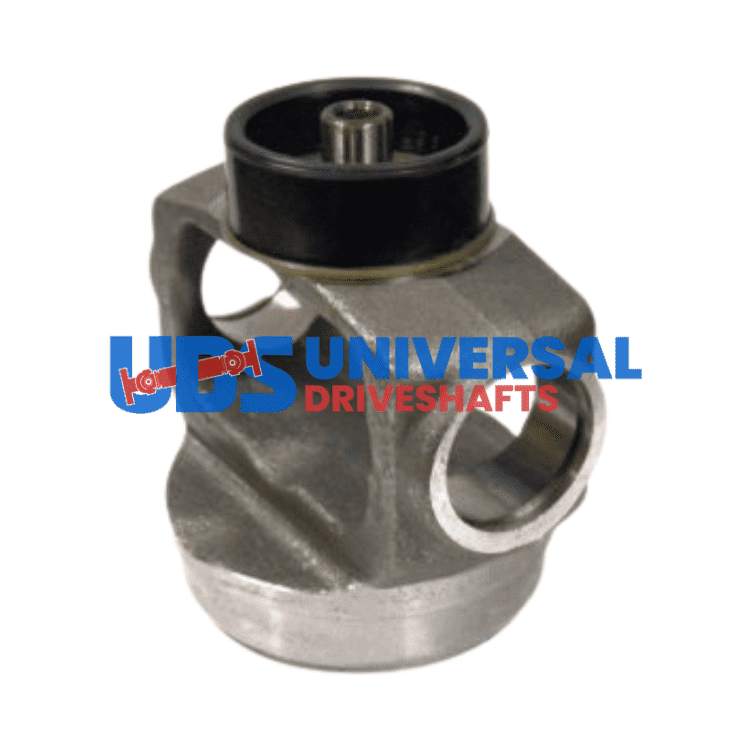

The 2-28-2947 is a 1310 series ball stud yoke manufactured by UDS for 2.000" OD x 0.120" wall tube. The butt diameter is 1.766" and the centerline-to-weld dimension is 1.438". The ball stud measures 0.600" length x 0.500" diameter. A rubber dust cover is included with this yoke.

Specifications

• Part Number: 2-28-2947
• Brand: UDS
• Series: 1310
• Ball Stud Length x Diameter: 0.600" x 0.500"
• Butt Diameter: 1.766"
• Center UJ to Weld: 1.438"
• Tube Diameter x Wall: 2.000 x 0.120"
• Notes: Dust Cover Rubber included

When preparing the 2-28-2947 for welding, confirm tube OD is 2.000" and wall is 0.120" — the 1.766" butt diameter is sized for this heavy-wall specification. The 1.438" CL-to-weld is a short dimension suited for driveshafts where minimal yoke protrusion is required. The ball stud at 0.500" diameter and 0.600" length must match the socket in the companion CV centering socket if this yoke is used in a CV joint application.

The rubber dust cover included with the 2-28-2947 protects the ball stud socket from contamination; inspect and replace this cover if damaged during handling or installation. The 1310 series rating applies at this end of the driveshaft — confirm the U-joints and companion yokes across the driveline are also 1310 series. The 2.000" OD x 0.120" wall tube combination is a heavier-wall specification than the standard 0.083" variant, suitable for applications with higher torsional loads at this tube diameter.
