3-28-1747 Ball Stud Yoke 1350 Series , Fits Tube 2.750 x 0.083 | 3526-28 Butt Dia 2.595

3-28-1747 UDS 1350 Series Ball Stud Yoke for 2.750x0.083 Tube

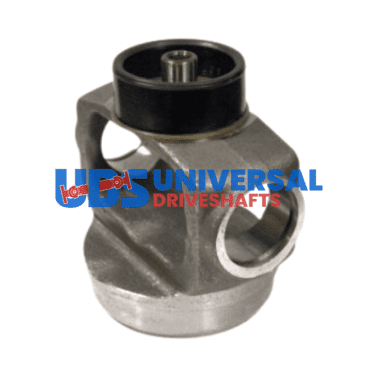

The 3-28-1747 is a 1350 series ball stud yoke manufactured by UDS for 2.750" OD x 0.083" wall tube. The butt diameter is 2.594" and the centerline-to-weld dimension is 1.810". The ball stud measures 0.600" length x 0.500" diameter. A rubber dust cover is included with this yoke. Also referenced as part 3526-28.

Specifications

• Part Number: 3-28-1747 (Ref: 3526-28)
• Brand: UDS
• Series: 1350
• Ball Stud Length x Diameter: 0.600" x 0.500"
• Butt Diameter: 2.594"
• Center UJ to Weld: 1.810"
• Tube Diameter x Wall: 2.750 x 0.083"
• Notes: Dust Cover Rubber included

When preparing the 3-28-1747 for welding, confirm the tube OD is 2.750" and the wall is 0.083". The 2.594" butt diameter is machined for this specific tube; heavier-wall tube will reduce the bore below 2.594" and prevent proper fit. The 1.810" CL-to-weld dimension is short — confirm this places the U-joint centerline in the correct position for the driveshaft geometry before cutting tube stock.

The 3-28-1747 shares ball stud dimensions (0.600" x 0.500") with the 1310-series 2-28-2947, but operates in the 1350 series at this larger tube OD. The 1350 series provides higher torque capacity than 1310 and 1330. The rubber dust cover protects the ball stud socket; inspect it before installation and replace if cracked or torn. This yoke is also listed under part number 3526-28 for cross-reference purposes.
