3104-322CV

$71.97

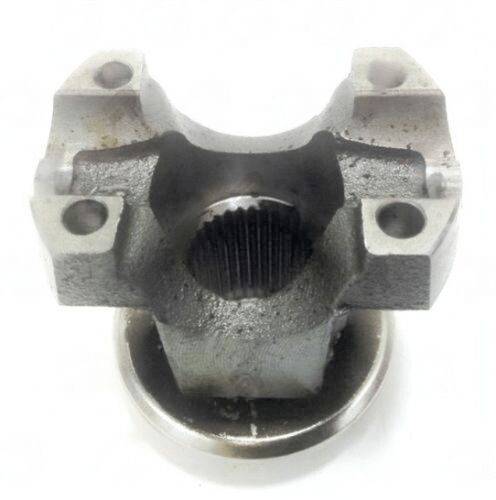

The 3104-322CV end yoke is designed for the 2003-2006 Jeep Rubicon equipped with a 241 transfer case. This yoke belongs to the 1310 series and features a spline count of 32, with a spline diameter of 1.401 inches and a hub diameter of 1.943 inches. The through-hole measures 2.000 inches, and the centerline-to-end distance is 3.875 inches. Classified as light duty (LD) and in a CV style, this end yoke serves as a replacement for the factory four-bolt transfer case output flange and harmonic balancer in the Jeep Rubicon. It enables the construction of a 1310 Spicer-style CV rear driveshaft, while the front shaft in the 2003-2006 Rubicon utilizes a factory 1330 CV.

3104-322CV

$71.97

Additional information

Weight 10 lbs
Dimensions 25 × 18 × 10 in
CJ TO END

3.875
HUB DIA

1.943
Notes

03-06 JEEP RUBICON WITH 241 TRANSFER CASE
Partn number

3104-322CV
SERIES

1310
SPLINES COUNT

32
SPLINES DIA

1.401
STYLE

CV
Through hole

2.000"
