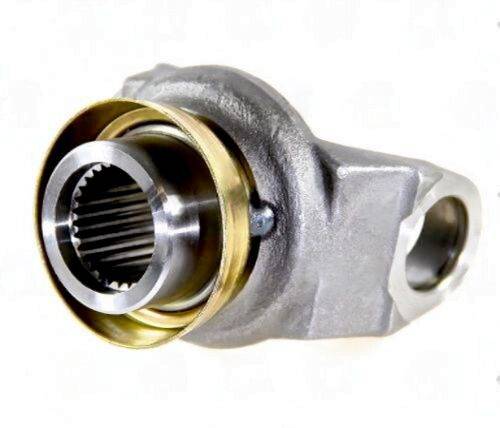

3104-302 – End Yoke – 1.278″ Splines Dia – 1310 Series
$99.61
1 in stock
16 People watching this product now!
Description
3104-302 End Yoke — 1310 series, 1.278 x 30 spline | 1.732″ hub dia | 3.375″ CJ-to-end | 1.870″ bore. Complete replacement, spline-specific fit. Count splines before ordering.
Full Description
The 3104-302 end yoke connects the driveshaft end to the axle or transfer case output shaft via a splined bore. Spline count and diameter are the critical dimensions — a mismatch here means the yoke either won't engage the shaft or will engage loosely and spin out under load. The 3104-302 end yoke is machined to one specific spline specification for 1310 series applications.
3104-302 End Yoke — Spline Specs & 1310 Series Fitment
The 1310 series covers light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The 3104-302 end yoke specs: 1.278 x 30 spline | 1.732" hub dia | 3.375" CJ-to-end | 1.870" bore. INFINIT CENTER SHAFT YOKE. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 3104-302 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 1310 — light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Spline: 1.278 x 30 — must match output shaft exactly
- Hub dia: 1.732" — outer dimension, verify clearance
- CJ-to-end: 3.375" — positions u-joint relative to axle flange
- Bore: 1.870"
- Style: SR
- Brand: UDS
- Note: INFINIT CENTER SHAFT YOKE
Specifications
- SKU: 3104-302
- Brand: UDS
- Series: 1310
- Spline Dia: 1.278
- Spline Count: 30
- Hub Dia: 1.732"
- CJ to End: 3.375"
- Through Hole: 1.870"
- Style: SR
- Notes: INFINIT CENTER SHAFT YOKE
Additional information
| Cj to end | 3.375 |
|---|---|
| Hub dia | 1.732 |
| Notes | INFINIT CENTER SHAFT YOKE |
| Partn number | 3104-302 |
| Series | 1310 |
| Splines count | 30 |
| Splines dia | 1.278 |
| Style | SR |
| Through hole | 1.870″ |
