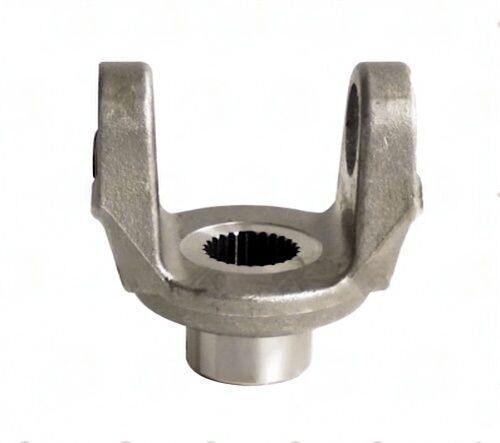

3104-266 – End Yoke – 1.146″ Splines Dia – 1.500″ Hub Dia – 26 Spline
$59.18
2 in stock
Description
3104-266 — 1310 Series end yoke with 1.146-inch spline bore, 1.500-inch hub, and SR snap ring retention. Drop-in replacement for 1310 Series output shafts — OSR TYPE – USED ON NISSAN – FORD – TOYOTA SHAFTS AND MORE.
Full Description
3104-266 is a UDS 1310 Series end yoke. Spline diameter: 1.146". Spline count: 26. Hub diameter: 1.500". Retention style: SR. This is the replacement specification for 1310 Series output shafts in OSR TYPE - USED ON NISSAN - FORD - TOYOTA SHAFTS AND MORE applications. If your numbers match, this is your part.
Engineering Specifications
All dimensions are as-machined. Match each to your output shaft before ordering. No modification required for correct-fit installations.
| Specification | Value |
|---|---|
| Series | 1310 Series |
| Spline Diameter | 1.146" |
| Spline Count | 26 |
| Hub Diameter | 1.500" |
| Center U-Joint to End | 2.875" |
| Through Hole Diameter | 1.469" |
| Snap Ring Style | SR |
| Application Note | OSR TYPE - USED ON NISSAN - FORD - TOYOTA SHAFTS AND MORE |
| Brand | UDS |
Snap Ring and Retention Detail
The SR retention system on this yoke uses a standard snap ring seated in the output shaft groove. The groove geometry dictates which snap ring style is required -- do not substitute ISR hardware in an OSR groove or vice versa. Snap ring ejection under load is a catastrophic failure mode that can damage adjacent driveline components.
Through bore ID: 1.469" -- required clearance dimension for applications with internal shafts.
Ordering and Cross-Reference
Part number 3104-266 corresponds to UDS part number 3104-266. Application: OSR TYPE - USED ON NISSAN - FORD - TOYOTA SHAFTS AND MORE Cross-reference against your existing yoke OEM part number to confirm compatibility before placing an order.
This yoke is stocked at Universal Driveshafts and ships the same business day when ordered before the daily cutoff. Combine with a 1310 Series U-joint for a complete output shaft service kit.
Part 3104-266 is a UDS product. Universal Driveshafts stocks a complete range of 1310 Series end yokes, U-joints, and driveshaft components. Contact our technical team for fitment assistance.
Additional information
| Cj to end | 2.875 |
|---|---|
| Hub dia | 1.500″ |
| Notes | OSR TYPE – USED ON NISSAN – FORD – TOYOTA SHAFTS AND MORE |
| Partn number | 3104-266 |
| Series | 1310 |
| Splines count | 26 |
| Splines dia | 1.146 |
| Style | SR |
| Through hole | 1.469 |
