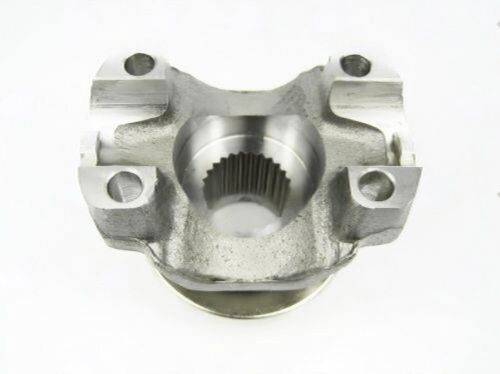

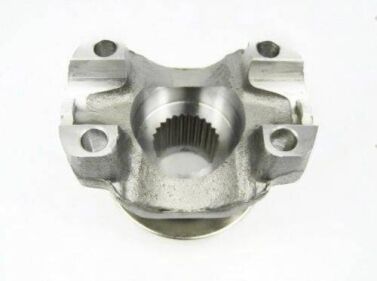

3104-262CV – End Yoke – 1310 Series – 1.146″ Splines Dia – 1.614″ Hub Dia
$80.93
1 in stock
Description
3104-262CV — 1310 Series end yoke with 1.146-inch spline bore, 1.614-inch hub, and CV snap ring retention. Drop-in replacement for 1310 Series output shafts — CV CONVERSION YOKE, INCLUDES HUB SLEEVE.
Full Description
Finding the right end yoke starts with matching the output shaft -- and 3104-262CV is engineered specifically for 1310 Series driveline applications (CV CONVERSION YOKE, INCLUDES HUB SLEEVE). This UDS end yoke connects your transmission or transfer case output to the driveshaft with dimensional precision that eliminates slop and premature wear.
Dimensional Specifications
Before ordering any end yoke, you must verify the output shaft's spline count and diameter. The 3104-262CV is built around a 1.146-inch spline diameter, 26-spline interface with CV-style retention. The hub measures 1.614" in diameter, and the center-of-U-joint to end distance is 3.000" -- confirming fit with your specific driveshaft length.
| Specification | Value |
|---|---|
| Series | 1310 Series |
| Spline Diameter | 1.146" |
| Spline Count | 26 |
| Hub Diameter | 1.614" |
| Center U-Joint to End | 3.000" |
| Through Hole Diameter | 1.500" |
| Snap Ring Style | CV |
| Application Note | CV CONVERSION YOKE, INCLUDES HUB SLEEVE |
| Brand | UDS |
Engineering and Material Quality
Every UDS end yoke in the 1310 Series lineup is forged or precision-machined from high-grade steel to withstand the torsional and bending loads of real-world drivetrain operation. Yoke ears are machined to consistent bearing cup bore tolerances so U-joint caps seat without rocking, preventing the micro-movement that leads to premature joint failure.
- Consistent bearing bore dimensions for tight U-joint fit
- Designed to OEM companion flange specifications
- Through hole ID of 1.500" provides clearance for speedometer cables or internal shafts where applicable
- Compatible with standard 1310 Series U-joint caps
Installation Guidance
Installation requires that the output shaft splines are clean and free of corrosion. Apply a light coat of assembly lube to the splines before pressing the yoke into position. Torque the retaining nut to OEM specification -- do not reuse stretch bolts or damaged snap rings. If the snap ring style is CV, confirm that the groove in the output shaft matches this style before installation.
Always balance the driveshaft assembly after replacing end yokes on vehicles driven above 55 mph to prevent vibration.
Part 3104-262CV is a UDS product. Universal Driveshafts stocks a complete range of 1310 Series end yokes, U-joints, and driveshaft components. Contact our technical team for fitment assistance.
Additional information
| Cj to end | 3.000″ |
|---|---|
| Hub dia | 1.614 |
| Notes | CV CONVERSION YOKE, INCLUDES HUB SLEEVE, DODGE & JEEP FRONT TRANSFER CASE |
| Partn number | 3104-262CV |
| Series | 1310 |
| Splines count | 26 |
| Splines dia | 1.146 |
| Style | CV |
| Through hole | 1.500″ |
