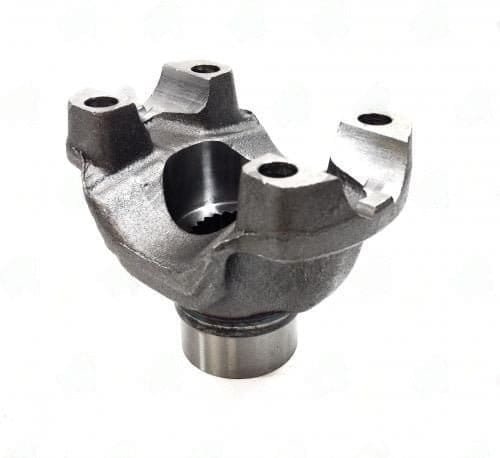

3104-261CV – End Yoke – 1.146″ Splines Dia – 26 Spline
$104.06
0 in stock
Description
3104-261CV is an essential End Yoke designed for use in driveline systems that utilize an open socket style CV head. This component connects the driveshaft to the center section, ensuring reliable performance in demanding applications. With a spline diameter of 1.146″ and 26 splines, this yoke fits perfectly with 1310 Series U-joints, which is crucial for maintaining the integrity of the driveline.
Key dimensions include a hub diameter of 1.453″ and a Cj to end measurement of 3.000″. These specifications are vital for proper alignment and minimizing wear during operation. The 3104-261CV also features a through hole measuring 1.500″, allowing for easy installation and secure mounting.
- Ensure proper spline engagement depth during installation.
- Verify phasing with the opposite yoke to prevent vibrations.
- Never force spline entry to avoid damaging the yoke.
This End Yoke is particularly useful in applications where robust connection and flexibility are required, making it a reliable choice for performance builders and fleet technicians alike. The 3104-261CV End Yoke stands out for its compatibility with open socket style CV heads, making it a go-to component for maintaining driveline efficiency.
| Cj to end |
3.000" |
|---|---|
| Hub dia |
1.453 |
| Notes |
USED TO BOLT UP FOR AN OPEN SOCKET STYLE CV HEAD TO CENTER SECTION |
| Partn number |
3104-261CV |
| Series |
1310 |
| Splines count |
26 |
| Splines dia |
1.146 |
| Style |
CV |
| Through hole |
1.500" |
