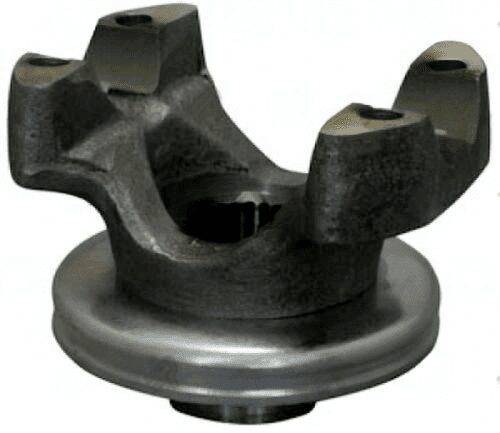

3104-25 – End Yoke – 1.085″ Splines Dia – 25 Spline
$94.39
0 in stock
Description
3104-25 — 1310 Series end yoke with 1.085-inch spline bore, 1.521-inch hub, and UB snap ring retention. Drop-in replacement for 1310 Series output shafts — GM 8.2.
Full Description
A worn or damaged end yoke is one of the most common causes of driveline vibration and U-joint failure -- yet it's often overlooked during diagnosis. The 3104-25 from UDS provides a direct, properly dimensioned replacement for 1310 Series applications, specifically engineered for GM 8.2, restoring the tight tolerances that eliminate vibration at the source.
The Problem: Worn Yoke Geometry
When end yoke bores wear oval or the snap ring groove erodes, U-joint caps begin to rock in their seats. This produces a clicking or clunking noise at low speed, a vibration that tracks with vehicle speed, and -- in severe cases -- catastrophic U-joint ejection. The 3104-25 replaces the worn geometry with new machined surfaces: 1.085" spline bore, 1.521" hub diameter, bearing bores held to 1310 Series tolerances.
| Specification | Value |
|---|---|
| Series | 1310 Series |
| Spline Diameter | 1.085" |
| Spline Count | 25 |
| Hub Diameter | 1.521" |
| Center U-Joint to End | 2.875" |
| Through Hole Diameter | 1.500" |
| Snap Ring Style | UB |
| Application Note | GM 8.2 |
| Brand | UDS |
Specifications That Guarantee Fit
Precision fit starts with matching three numbers: spline count, spline diameter, and snap ring style. The 3104-25 is built to the following dimensions -- verify each against your output shaft before ordering.
Long-Term Reliability
The UDS manufacturing process subjects each yoke to dimensional inspection before shipment. Bearing bore roundness, spline form, and hub diameter are checked against 1310 Series master gauges. The result is a yoke that installs without hammering, retains U-joint caps securely under high-cycle loading, and seals against output shaft oil seals without leaking.
- Through hole: 1.500" -- clears internal shafts and cables
- Center U-joint to end: 2.875" -- maintains correct driveshaft length
- Snap ring style: UB -- matches OEM retention method
- Drop-in replacement -- no machining required
Part 3104-25 is a UDS product. Universal Driveshafts stocks a complete range of 1310 Series end yokes, U-joints, and driveshaft components. Contact our technical team for fitment assistance.
Additional information
| Cj to end | 2.875 |
|---|---|
| Hub dia | 1.521 |
| Notes | GM 8.2, U BOLT PART NUMBER: 2-94-28 |
| Partn number | 3104-25 |
| Series | 1310 |
| Splines count | 25 |
| Splines dia | 1.085 |
| Style | UB |
| Through hole | 1.500″ |
