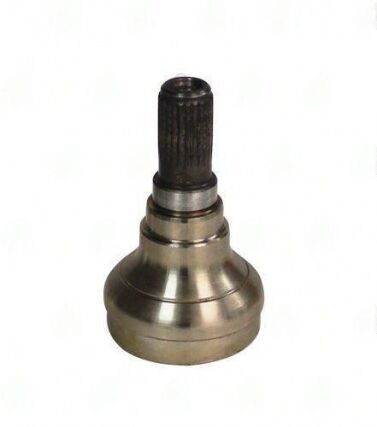

3053-233 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.875″ – End To Weld 4.325

The 3053-233 midshaft stub is the center section of a two-piece driveshaft — it carries the center support bearing and bridges the front and rear shaft assemblies. Spline count, spline diameter, and butt diameter are all spec-specific. The 3053-233 midshaft stub won't fit a different tube OD or a different output shaft spline, and substituting a close-but-not-exact part will produce vibration that traces directly back to this component.

3053-233 Midshaft Stub — Spline & Tube Dimensions

The 3053-233 midshaft stub specs: 22/23 X 0.990 spline | 1.420" spline length | 2.875" butt dia | 4.325" end-to-weld | fits 3.000 tube. Use with 1404-231 or 3004-231 midship yoke. The butt diameter determines how the stub seats in the driveshaft tube — too loose and the weld joint runs off-center. Spline length determines engagement depth on the output shaft; short engagement under high torque loads damages the shaft splines before the stub shows any sign of wear.

When replacing a midshaft stub, measure both the tube ID and the output shaft spline count before ordering. Check runout on the new 3053-233 midshaft stub before welding — a stub with more than 0.005" runout will never balance correctly regardless of how many weights you add.

Key Features

• Spline: 22/23 X 0.990 — verify against output shaft
• Spline length: 1.420" — full engagement required under load
• Butt dia: 2.875" — must seat concentrically in driveshaft tube
• End-to-weld: 4.325" — factors into total shaft length
• Tube fit: 3.000 — designed for this tube specification
• Bearing dia: 1.181" — matches center support bearing inner race
• Brand: UDS
• Note: Use with 1404-231 or 3004-231 midship yoke

Specifications

• SKU: 3053-233
• Brand: UDS
• Spline: 22/23 X 0.990
• Spline Length: 1.420"
• Butt Dia: 2.875"
• End to Weld: 4.325"
• Tube Fit: 3.000
• Bearing Dia: 1.181"
• Notes: Use with 1404-231 or 3004-231 midship yoke
