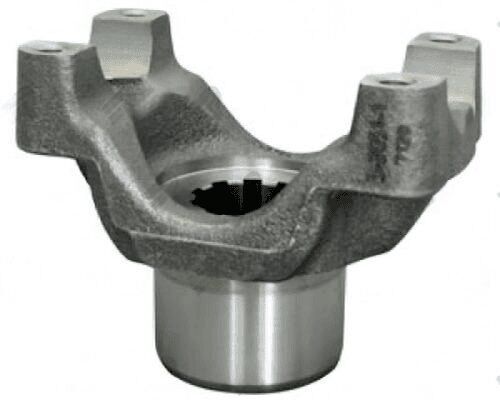

3-4-1441-1 End Yoke – Splined Bore 1350 Series, Strap Style, 1.500×10 Spline, 2.250 Hub
$59.87
+50 in stock
14 People watching this product now!
Description
3-4-1441-1 end yoke, 1350 series strap style, 1.500″x10 spline, 2.250″ hub dia, 3.500″ CJ-to-end, 2.000″ through-hole. Count output shaft splines before ordering.
Full Description
3-4-1441-1 End Yoke 1350 Series Strap Style 1.500x10 Spline 2.250 Hub
The 3-4-1441-1 is a 1350 series strap-style (BS) end yoke with a 1.500" spline diameter and 10-spline bore. The hub diameter is 2.250", the CJ to end dimension is 3.500", and the through-hole is 2.000". Compared to the 3-4-1501-1 (same spline and hub spec), the 3-4-1441-1 has a smaller 2.000" through-hole and an identical 3.500" CJ-to-end — confirm the through-hole dimension against retaining hardware when choosing between these two variants.
Specifications
- Part Number: 3-4-1441-1
- Series: 1350
- Style: BS (Strap)
- Spline Diameter: 1.500"
- Spline Count: 10
- Hub Diameter: 2.250"
- CJ to End: 3.500"
- Through Hole: 2.000"
When fitting the 3-4-1441-1, verify the output shaft has 10 splines at 1.500" diameter. The 2.000" through-hole is the critical differentiator from the 3-4-1501-1 (2.063" through-hole) — where a larger fastener or collar passes through the bore, the 3-4-1501-1 is required. The 2.250" hub seats against the housing bore or seal surface; confirm housing dimensions match.
The 3-4-1441-1 is strap-retention style in the 1350 series. Strap-style and snap-ring-style U-joint trunnions are not interchangeable. Use the 3.500" CJ-to-end and 2.000" through-hole as the key identifiers when cross-referencing this part against similar 1350 series strap yoke numbers. Count output shaft splines before ordering.
Additional information
| Cj to end | 3.500″ |
|---|---|
| Hub dia | 2.250 |
| Partn number | 3-4-1441-1 |
| Series | 1350 |
| Splines count | 10 |
| Splines dia | 1.500″ |
| Style | BS |
| Through hole | 2.000″ |
