Brand:

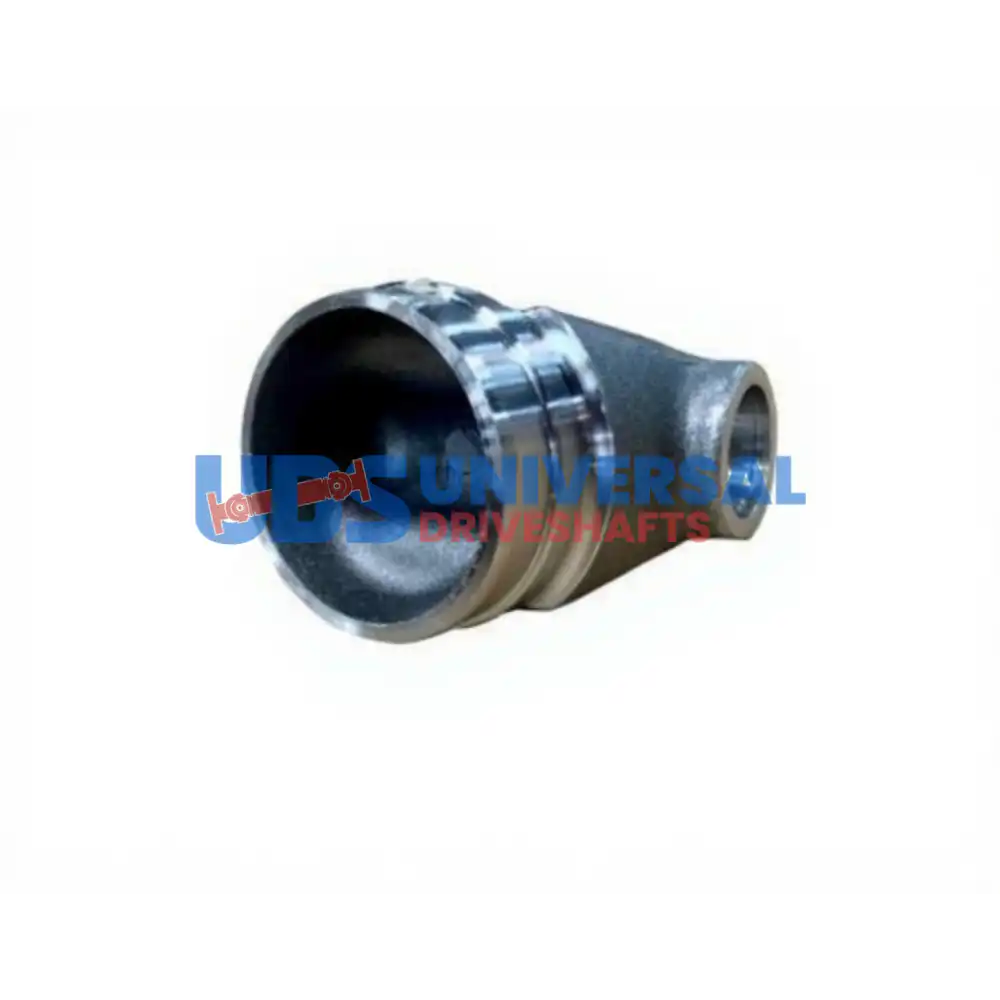

3-28-97 Weld Tube Yoke 1410 Fits 3.000 x 0.083 Tube , Butt: 2.844 Inch , Centerline To Weld: 2.125 Inch
$21.43
+50 in stock
19
People watching this product now!
Description
3-28-97 weld yoke — Steel, 1410 series. fits 3.000X0.083 tube | 2.844″ butt dia | 2.125″ center-to-weld. Verify tube OD before ordering.
Full Description
The 3-28-97 weld yoke gets welded directly onto the driveshaft tube. Once it's on and balanced, it's the permanent u-joint connection at that end of the shaft.
3-28-97 Weld Yoke -- Dimensions & Fitment
The 3-28-97 weld yoke: fits 3.000X0.083 tube | 2.844" butt dia | 2.125" center-to-weld.
The 1410 series is the standard for HD trucks -- F-250/350/450, Ram 2500/3500, Dana 60/70 axles. Steel DOM-compatible -- standard weld prep, full-penetration weld recommended. Center-to-weld dimension determines how much of your total shaft length is consumed by this end.
Key Features
- Series: 1410 -- HD trucks -- F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Tube fit: 3.000X0.083 -- butt diameter machined to this tube OD only
- Butt diameter: 2.844" -- slides over tube OD for weld prep
- Center-to-weld: 2.125" -- factors into overall driveshaft length calculation
- Steel construction -- standard weld-compatible material
Specifications
- SKU: 3-28-97
- Brand: UDS
- Series: 1410
- Material: Steel
- Tube Dia x Wall: 3.000X0.083
- Butt Dia: 2.844"
- Center UJ to Weld: 2.125"
Additional information
| Butt dia |
2.844 |
|---|---|
| Center u j to weld |
2.125 |
| Material |
STEEL |
| Partn number |
3-28-97 |
| Series |
1410 |
| Tube dia wall |
3.000X0.083 |
| Brand |
UDS |
