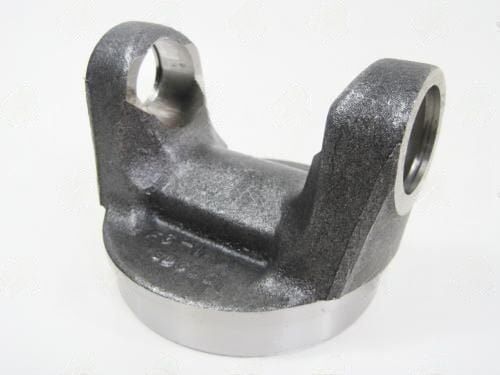

3-28-457 Weld Tube Yoke 1410 Ser’ , Fits 4.000 x 0.083 Tube , Butt: 3.844″

• 1410 series: 1.188" cap diameter U-joint -- larger than 1350 (1.062"/1.188" cap family); verify cap OD against the joint in your application
• 4.000" x 0.083" tube -- standard specification for heavy 1/2-ton and 3/4-ton truck rear driveshafts
• 3.844" butt diameter -- standard for 4.000"x0.083" across 1410, 1480, and 7290 series at this wall; tube preparation is identical
• 1.875" CL-to-weld -- compact geometry; confirms that the 1410-series yoke body is shorter than the 1480 series at the same tube size (2.031" CL for 1480)
• Pair with a 1410-series end yoke at the axle end for consistent series strength through the full assembly

The 1410 series occupies the gap between 1350 (lighter trucks) and 1480 (heavier trucks). The 1.188" cap provides substantially more bearing area than the 1350's 1.062" cap -- approximately 25% more journal cross-section -- which makes the 1410 appropriate for sustained high-angle operation like 4WD front driveshafts or heavily lifted rear applications. This weld yoke uses the 1410 cap geometry; do not use 1350-series joints in this yoke ear.
