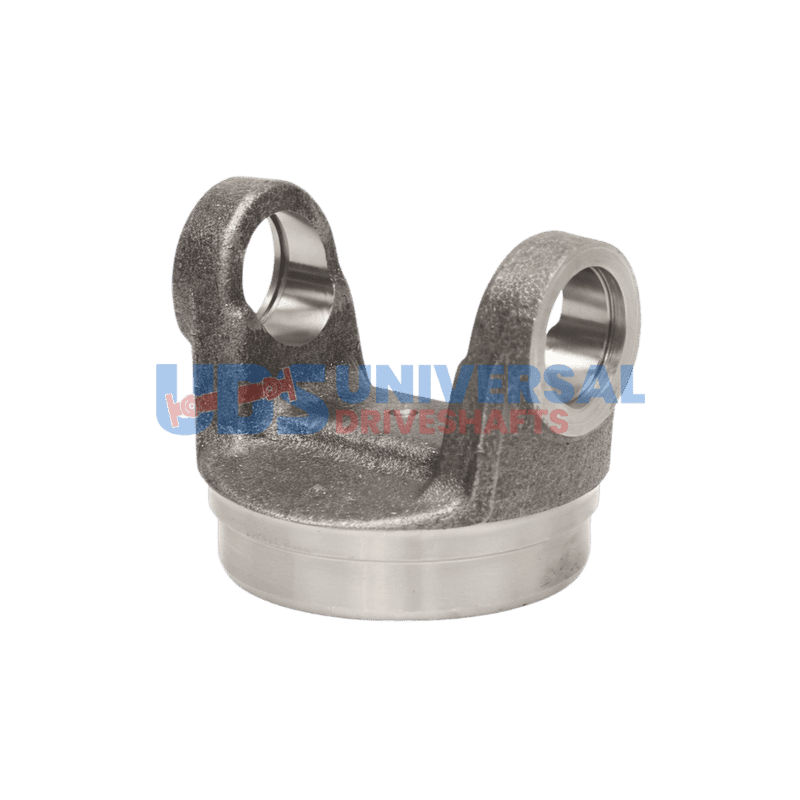

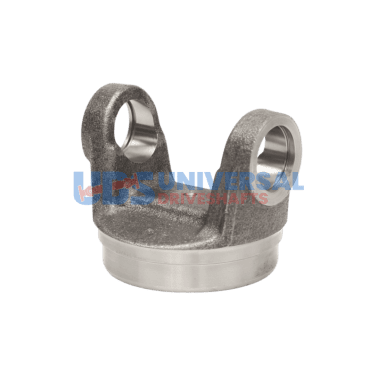

3-28-427U – Weld Yokes – 1350 Series – Butt Dia 3.321″ – Tube Dia Wall 3.500×0.095
$21.74
16
People watching this product now!
Description
1350 series Steel 3-28-427U weld yoke. fits 3.500×0.095 tube | 3.321″ butt dia | 1.840″” center-to-weld. Weld-on tube end connection.
Full Description
Weld yoke fit is determined by tube OD. The 3-28-427U is machined to accept a specific tube diameter -- butt it up, get it square, weld it. That simple, that exacting.
3-28-427U Weld Yoke -- Dimensions & Fitment
The 3-28-427U weld yoke: fits 3.500x0.095 tube | 3.321" butt dia | 1.840"" center-to-weld.
The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds. Steel DOM-compatible -- standard weld prep, full-penetration weld recommended. Center-to-weld dimension determines how much of your total shaft length is consumed by this end.
Key Features
- Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
- Tube fit: 3.500x0.095 -- butt diameter machined to this tube OD only
- Butt diameter: 3.321" -- slides over tube OD for weld prep
- Center-to-weld: 1.840"" -- factors into overall driveshaft length calculation
- Steel construction -- standard weld-compatible material
- Spicer-built -- OEM supplier, forged not cast
Specifications
- SKU: 3-28-427U
- Brand: SPICER
- Series: 1350
- Material: Steel
- Tube Dia x Wall: 3.500x0.095
- Butt Dia: 3.321"
- Center UJ to Weld: 1.840""
Additional information
| Butt dia |
3.321 |
|---|---|
| Center u j to weld |
1.840" |
| Material |
STEEL |
| Partn number |
3-28-427U |
| Series |
1350 |
| Tube dia wall |
3.500×0.095 |
| Brand |
SPICER |
