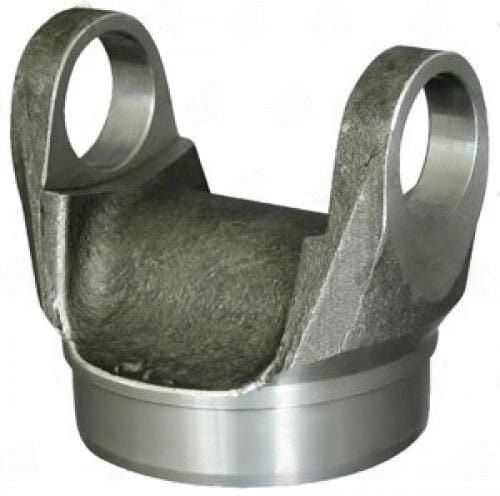

2926-31 – Weld Yokes – 7290 Series – Butt Dia 2.875″ – Tube Dia Wall 3.000X0.065

• 7290 U-joint cap diameter: 1.125" -- larger than 1310 and 1350 series; verify joint series before installation
• 3.000" x 0.065" tube -- standard thin-wall light-medium truck specification in the 7290 family
• 2.875" butt diameter -- step calculation: 3.000" - 2x0.065" = 2.870" bore; butt at 2.875" creates 0.005" interference for centering
• 1.812" CL-to-weld -- same as 2926-32; confirms consistent weld geometry across the 3.000" and 3.250" variants in this series
• Use with a 7290-series weld yoke at both shaft ends for series-matched torque capacity

When fabricating a GM truck driveshaft with 3.000" tube and 7290 joints, the balance limit is typically 0.10 oz-in residual imbalance after welding. Hot-straightening is not recommended on 7290 weld yoke assemblies -- the weld yoke material is not rated for the thermal cycling involved in straightening, and distorted assemblies should be scrapped rather than re-formed. Maintain proper welding technique and fixturing to hold runout within 0.010" total on the first attempt.
