2752-9921 – CV Joint Kit – 26.8″ Splines dia – Bolt Hole Dia 10.4″ – 32 Spline
$179.67
3 in stock
19
People watching this product now!
Description

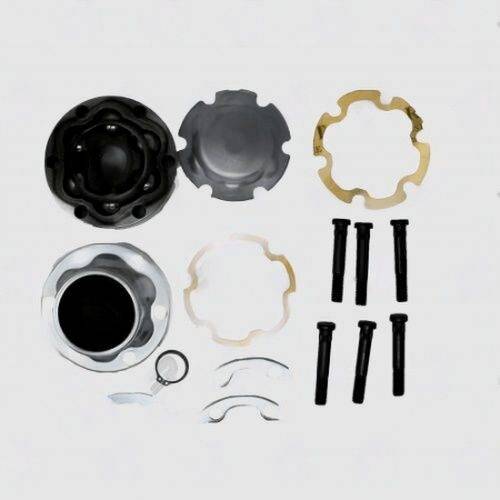

CV joint kit 2752-9921. 99.45 OD | 26.8 x 32 spline | 27.5 inner race width | 29 outer race width. BMW. Rzeppa design, complete kit.
Full Description
CV joint kit selection requires matching outer diameter, spline count, and inner/outer race width. The 2752-9921 is spec'd for one application -- confirm all three.
2752-9921 CV Joint Kit Dimensions
2752-9921 CV joint kit -- 99.45 OD | 26.8 x 32 spline | 27.5 inner race width | 29 outer race width. BMW.
Complete kit -- don't rebuild a CV with individual components from different sources. Mismatched races and balls cause uneven load distribution and early failure.
Key Features
- Style: Rzeppa -- constant velocity design for smooth power delivery at angle
- Outer dia: 99.45 -- must fit housing bore exactly
- Spline: 26.8 x 32 -- shaft engagement spec
- Inner race width: 27.5 -- race stack dimension
- Outer race width: 29 -- housing bore dimension
- Complete kit -- all components matched for correct assembly and load distribution
- Note: BMW
Specifications
- SKU: 2752-9921
- Brand: UDS
- Style: Rzeppa
- Outer Dia: 99.45
- Spline Dia: 26.8
- Spline Count: 32
- Inner Race Width: 27.5
- Outer Race Width: 29
- Notes: BMW
Additional information
| Bolt hole dia |
10.4 |
|---|---|
| Splines count |
32 |
| Splines dia |
26.8 |
| Outer dia |
99.45 |
| Outer race width |
29 |
| Inner race width |
27.5 |
| Bolt hole count |
6 |
| Gasket |
INCLUDED |
| Boot cap part |
INCLUDED |
| Notes |
BMW |
| Partn number |
2752-9921 |
