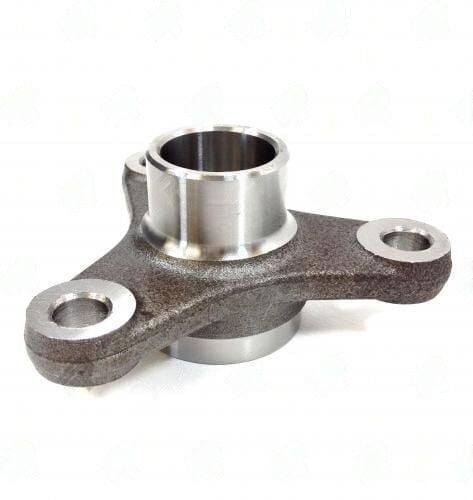

2726-55 – Tri & Quad Prongs – Bolt Circle Dia 96MM – Butt Dia 1.844″ – Nose Bushing Dia 28MM
$88.21
23 in stock
20
People watching this product now!
Description
2726-55 Tri Prong — 96MM bolt circle | 12MM bolt holes | 1.844″ butt dia | 0.750″” face-to-weld | fits 2.000X0.083 tube. Complete metric weld-in driveshaft connector.
Full Description
The 2726-55 tri prong is the weld-in metric driveshaft connector used on European and import vehicles that use a 3-bolt or 4-bolt prong flange connection instead of a standard yoke. The 2726-55 tri prong welds onto the driveshaft tube and bolts to the differential flange — bolt circle diameter and butt diameter are the two critical specs, both in metric dimensions.
2726-55 Tri Prong — Metric Bolt Circle & Tube Dimensions
The 2726-55 tri prong specs: 96MM bolt circle | 12MM bolt holes | 1.844" butt dia | 0.750"" face-to-weld | fits 2.000X0.083 tube. BMW. Bolt circle is metric — measure in millimeters against your diff flange, not inches. Butt diameter must match your tube OD for a centered weld joint. Face-to-weld determines how much of the total shaft length this connector consumes.
Weld prep on the 2726-55 tri prong: butt it squarely against the tube end, check alignment before tacking, verify runout before final weld. Metric bolt patterns on European flanges vary across manufacturers and model years — measure your actual diff flange, don't assume from the vehicle spec sheet.
Key Features
- Bolt circle: 96MM — metric, must match diff flange exactly
- Bolt hole dia: 12MM — metric hole dimension
- Butt dia: 1.844" — must match tube OD for centered weld
- Face-to-weld: 0.750"" — length consumed in shaft assembly
- Nose bushing dia: 28MM — centers prong in flange bore
- Tube compatibility: 2.000X0.083
- Note: BMW
Specifications
- SKU: 2726-55
- Brand: UDS
- Bolt Circle: 96MM
- Bolt Hole Dia: 12MM
- Butt Dia: 1.844"
- Face to Weld: 0.750""
- Nose Bushing: 28MM
- Tube Fit: 2.000X0.083
- Notes: BMW
Additional information
| Bolt circle dia |
96MM |
|---|---|
| Bolt hole dia |
12MM |
| Butt dia |
1.844 |
| Face to weld |
0.750" |
| Nose bushing dia |
28MM |
| Notes |
BMW |
| Partn number |
2726-55 |
| Tube dia wall |
2.000X0.083 |
| Bolt hole pilot dia |
N/A |
