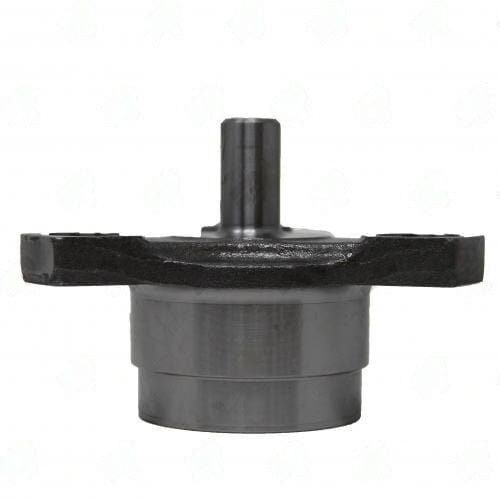

2726-262 – Tri & Quad Prongs – Bolt Circle Dia 96MM – Bolt Hole Dia 10MM – Butt Dia 2.344

The 2726-262 is designated as a Male Pin Style tri-prong yoke. Where conventional prong yokes have sockets that accept pins from the mating spider, the male pin style reverses this: the yoke carries the pins (prongs) that insert into sockets on the mating component. This is an important distinction because male-pin and female-socket yokes are not interchangeable.

The 16mm nose bushing is significantly smaller than the 28-32mm used on conventional prong yokes. This small bushing diameter is consistent with a different joint geometry where the male pin style uses a narrower contact interface. The 22mm pilot on a 96mm bolt circle provides registration.

• Part Number: 2726-262
• Style: Male Pin
• Bolt Circle Dia: 96mm
• Bolt Hole Dia: 10mm
• Pilot Dia: 22mm
• Nose Bushing Dia: 16mm
• Butt Diameter: 2.344"
• Face-to-Weld: 1.375"
• Tube: 2.500" x 0.083"

Before ordering, confirm whether your application uses male-pin or conventional (socket) style prongs. If the original yoke has pins projecting outward from the prong faces, you need a male-pin style. If it has holes or sockets, you need a conventional style. The 2726-260 is the conventional-socket version for the same 96mm pattern, so one of these two is likely correct depending on your configuration.
