2726-260 – Tri & Quad Prongs – Bolt Circle Dia 96MM – Butt Dia 2.344″ – Face To Weld 1.375

2726-260 Tri Prong – 96MM Bolt Circle – 2.344" Butt Dia – 1.375" Face to Weld

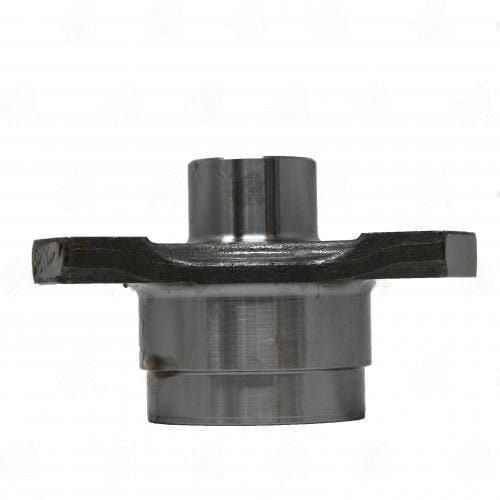

The 2726-260 is a tri prong flange yoke with a 96MM bolt circle diameter. The bolt holes are 10MM clearance with a 22mm pilot diameter. The butt diameter measures 2.344" and the face-to-weld length is 1.375". The nose bushing diameter is 28MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 2726-260
• Bolt Circle Dia: 96MM
• Bolt Hole Dia: 10MM
• Bolt Hole Pilot Dia: 22mm
• Nose Bushing Dia: 28MM
• Butt Dia: 2.344"
• Face to Weld: 1.375"
• Tube Dia x Wall: 2.500" x 0.083"

When fitting the 2726-260, confirm the driveshaft tube is 2.500" OD with 0.083" wall before welding. The 10MM bolt holes and 22mm pilot diameter must be verified against the companion flange. The 28MM nose bushing seats into a standard female pilot bore — contrast with the 2726-262 male pin style (16MM bushing) that uses the same bolt circle and face-to-weld. The 2726-260 shares the 96MM bolt circle and 1.375" face-to-weld with the 2726-262, but the nose bushing style differs (28MM standard vs 16MM male pin). Confirm the companion flange accepts a standard 28MM nose bushing rather than a male pin configuration before ordering the 2726-260.
