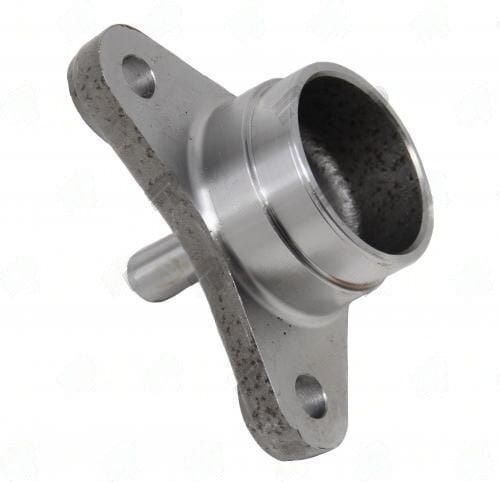

2726-259 – Tri & Quad Prongs – Bolt Circle Dia 110MM – Butt Dia 2.344″ – Face To Weld 1.250
$80.79
19 in stock
10
People watching this product now!
Description
2726-259 Tri Prong — 110MM bolt circle | 12MM bolt holes | 2.344″ butt dia | 1.250″” face-to-weld | fits 2.500X0.083 tube. Premium metric weld-in driveshaft connector.
Full Description
The 2726-259 tri prong is the weld-in metric driveshaft connector used on European and import vehicles that use a 3-bolt or 4-bolt prong flange connection instead of a standard yoke. The 2726-259 tri prong welds onto the driveshaft tube and bolts to the differential flange — bolt circle diameter and butt diameter are the two critical specs, both in metric dimensions.
2726-259 Tri Prong — Metric Bolt Circle & Tube Dimensions
The 2726-259 tri prong specs: 110MM bolt circle | 12MM bolt holes | 2.344" butt dia | 1.250"" face-to-weld | fits 2.500X0.083 tube. MALE PIN STYLE. Bolt circle is metric — measure in millimeters against your diff flange, not inches. Butt diameter must match your tube OD for a centered weld joint. Face-to-weld determines how much of the total shaft length this connector consumes.
Weld prep on the 2726-259 tri prong: butt it squarely against the tube end, check alignment before tacking, verify runout before final weld. Metric bolt patterns on European flanges vary across manufacturers and model years — measure your actual diff flange, don't assume from the vehicle spec sheet.
Key Features
- Bolt circle: 110MM — metric, must match diff flange exactly
- Bolt hole dia: 12MM — metric hole dimension
- Butt dia: 2.344" — must match tube OD for centered weld
- Face-to-weld: 1.250"" — length consumed in shaft assembly
- Nose bushing dia: 16MM — centers prong in flange bore
- Tube compatibility: 2.500X0.083
- Note: MALE PIN STYLE
Specifications
- SKU: 2726-259
- Brand: UDS
- Bolt Circle: 110MM
- Bolt Hole Dia: 12MM
- Butt Dia: 2.344"
- Face to Weld: 1.250""
- Nose Bushing: 16MM
- Tube Fit: 2.500X0.083
- Notes: MALE PIN STYLE
Additional information
| Bolt circle dia |
110MM |
|---|---|
| Bolt hole dia |
12MM |
| Butt dia |
2.344 |
| Face to weld |
1.250" |
| Nose bushing dia |
16MM |
| Notes |
MALE PIN STYLE |
| Partn number |
2726-259 |
| Tube dia wall |
2.500X0.083 |
| Bolt hole pilot dia |
18 mm |
