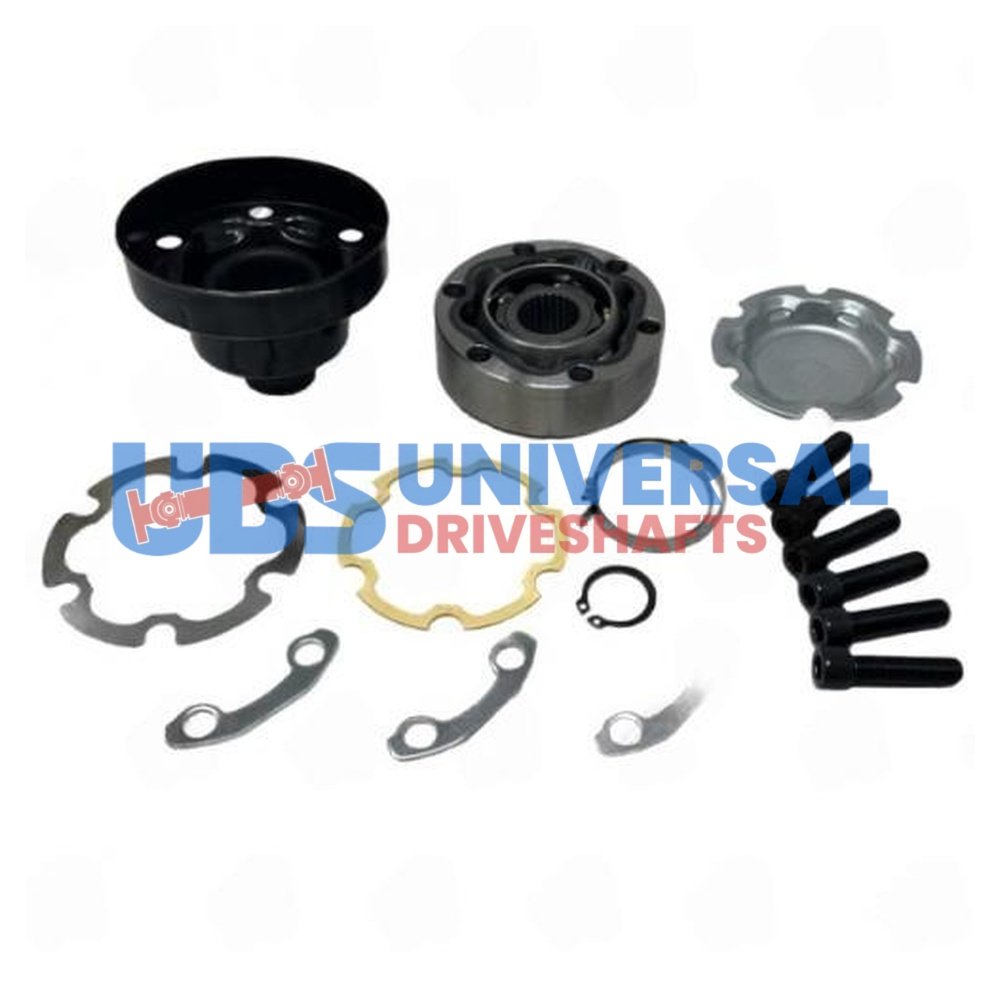

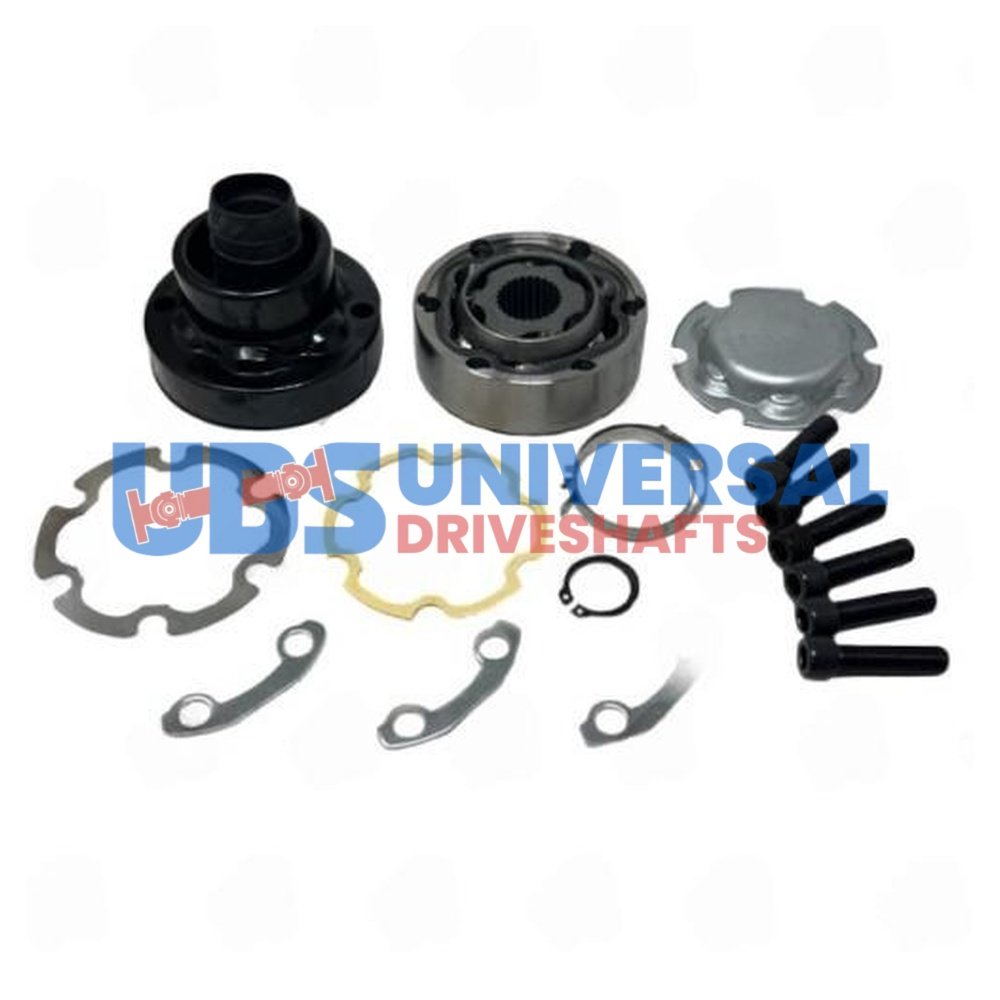

2552-1002 – CV Joint Kit – 27.98″ Splines dia – 10.52″ Bolt Hole Dia – 28.31″ Inner Race Width
$168.50
10 in stock
16 People watching this product now!
Description
2552-1002 CV joint kit. 99.55 OD | 27.98 x 25 spline | 28.31 inner race width | 29.03 outer race width. Full replacement — outer dia and spline count must match.
Full Description
The 2552-1002 is a Rzeppa-style CV joint kit -- the standard constant velocity design for driveshaft applications requiring smooth power transfer at angle.
2552-1002 CV Joint Kit Dimensions
The 2552-1002 CV joint kit: 99.55 OD | 27.98 x 25 spline | 28.31 inner race width | 29.03 outer race width. Porsche, VW.
Grease the joint thoroughly during installation -- CV joint failures from grease starvation happen faster than mechanical wear failures. Pack the inner race cavity before seating the cage.
Key Features
- Style: Rzeppa -- constant velocity design for smooth power delivery at angle
- Outer dia: 99.55 -- must fit housing bore exactly
- Spline: 27.98 x 25 -- shaft engagement spec
- Inner race width: 28.31 -- race stack dimension
- Outer race width: 29.03 -- housing bore dimension
- Complete kit -- all components matched for correct assembly and load distribution
- Note: Porsche, VW
Specifications
- SKU: 2552-1002
- Brand: UDS
- Style: Rzeppa
- Outer Dia: 99.55
- Spline Dia: 27.98
- Spline Count: 25
- Inner Race Width: 28.31
- Outer Race Width: 29.03
- Notes: Porsche, VW
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 10.52 |
| Boot cap part | 2518-652 |
| Gasket | INCLUDED |
| Inner race width | 28.31 |
| Outer dia | 99.55 |
| Outer race width | 29.03 |
| Splines count | 25 |
| Splines dia | 27.98 |
| Notes | Porsche, VW |
| Partn number | 2552-1002 |
