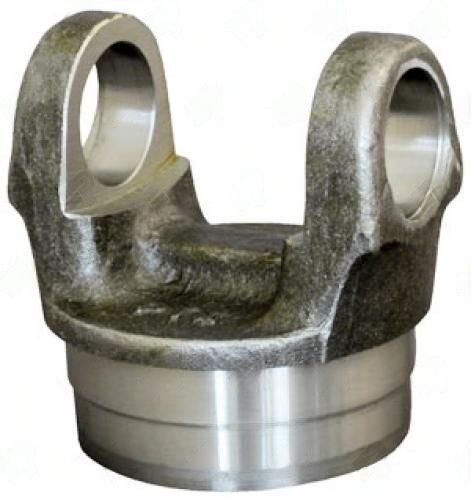

2326-26 – Weld Yokes – 2351-20 Series – Butt Dia 2.435″ – Tube Dia Wall 2.560×0.065

Toyota-Specific Tube Size: The 2.560" tube OD is a Toyota-standard metric-derived dimension (65mm nominal) that does not correspond to any inch-standard SAE tube size. Using a 2.500" tube weld yoke (butt 2.375" or 2.344") in a Toyota 2.560" tube bore will produce a loose pilot of 0.060" to 0.090" radial clearance -- far too much for consistent weld positioning. Order Toyota-specific yoke part numbers for all Toyota tube applications.

The 2326-26 covers Toyota rear-drive and 4WD applications using the 2351-20 U-joint series in 2.560" tube. The 2.435" butt diameter is derived from the 65mm (2.559") nominal tube bore minus a small clearance for self-centering during tack welding. The 1.750" CL-to-weld is the standard for Toyota 2351-20 applications. This weld yoke appears on a wide range of Toyota trucks, 4Runners, and land cruisers across multiple production years. The 2351-20 U-joint series uses Toyota's specific cap geometry -- always source Toyota-application joints for these assemblies rather than substituting a standard 1310 or similar domestic joint that cannot seat correctly in the Toyota ear bore geometry.
