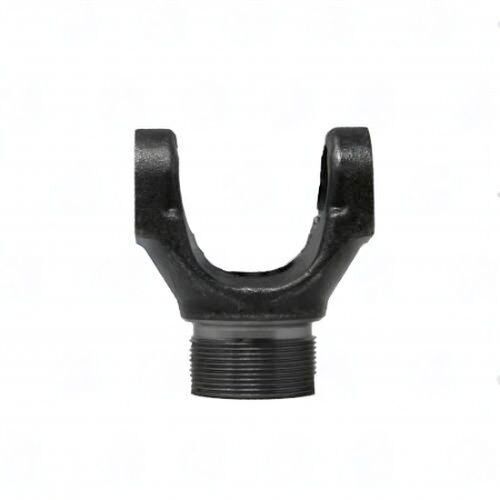

2104-341 – End Yoke – 1210 Series – 1.102″ Splines Dia – 1.535″ Hub Dia
$97.22
1 in stock
19 People watching this product now!
Description
1210 series 2104-341 end yoke. 1.102 x 34 spline | 1.535″ hub dia | 2.421″ CJ-to-end. SR retention. Direct swap for axle or T-case output.
Full Description
The 2104-341 is a 1210 series end yoke. It connects the driveshaft to the axle or transfer case output -- and it carries the u-joint at that end.
2104-341 End Yoke Specifications & Series
The 2104-341 end yoke -- 1.102 x 34 spline | 1.535" hub dia | 2.421" CJ-to-end. BMW - THREADED M39x1.5.
The 1210 series is the standard for older foreign compacts and small import trucks. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1210 -- older foreign compacts and small import trucks
- Spline: 1.102 x 34 -- must match axle/T-case shaft exactly
- Hub dia: 1.535" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 2.421" -- affects driveshaft working length and angle
- Retention: SR -- verify against your yoke configuration
- Note: BMW - THREADED M39x1.5
Specifications
- SKU: 2104-341
- Brand: UDS
- Series: 1210
- Spline Dia: 1.102
- Spline Count: 34
- Hub Dia: 1.535"
- CJ to End: 2.421"
- Style: SR
- Notes: BMW - THREADED M39x1.5
Additional information
| Cj to end | 2.421 |
|---|---|
| Hub dia | 1.535 |
| Notes | BMW – THREADED M39x1.5 |
| Partn number | 2104-341 |
| Series | 1210 |
| Splines count | 34 |
| Splines dia | 1.102 |
| Style | SR |
