3524-21 – H Yokes – 1350 Series – Swing Dia 4.640″ – Cj To Cj 2.875
$57.21
0 in stock
17
People watching this product now!
Description
3524-21 UDS 1350 series H yoke. Swing dia 4.640″, CJ to CJ 2.875″. BARREL TYPE
Full Description

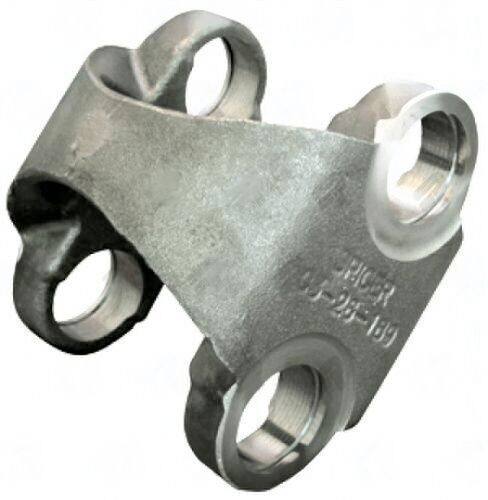

3524-21 UDS 1350 Series H Yoke
The 3524-21 is a 1350 series H yoke manufactured by UDS. It has a swing diameter of 4.640\" and a center-to-center dimension of 2.875\". BARREL TYPE.
Specifications
- Part Number: 3524-21
- Brand: UDS
- Series: 1350
- Swing Diameter: 4.640"
- CJ to CJ: 2.875"
- Notes: BARREL TYPE
When installing the 3524-21, confirm the 1350 series U-joint caps mate correctly with both yoke ears. The swing diameter of 4.640\" determines clearance at full articulation — verify this against tunnel or skid plate clearance. Center-to-center measurement of 2.875\" sets the working length of the joint.
The 1350 series H yoke 3524-21 is designed for use with matching 1350 series U-joints. Confirm series compatibility between both connected yokes and the U-joint cross before assembly. Mismatched series cap diameters will prevent proper snap-ring seating.
Additional information
| Cj to cj | 2.875 |
|---|---|
| Notes | BARREL TYPE |
| Partn number | 3524-21 |
| Series | 1350 |
| Swing dia | 4.640″ |
| Brand | UDS |
