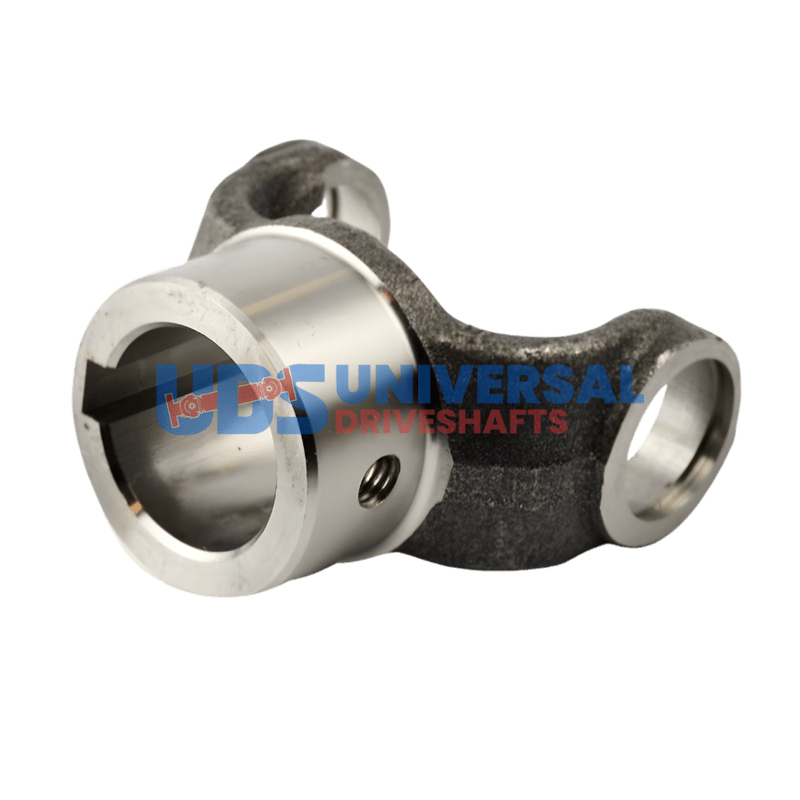

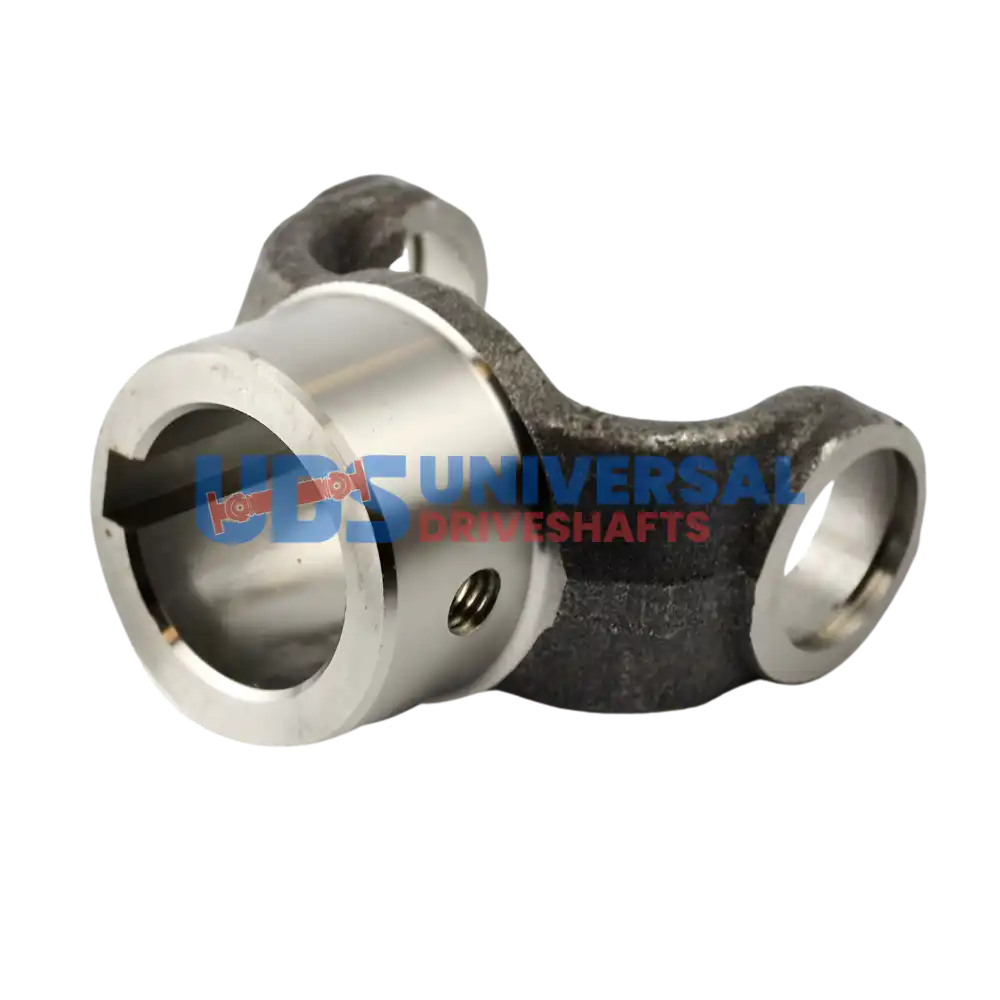

2-4-803 End Yoke – Round Bore 1310 Series, 1.375 Bore w/0.375 keyway, 2.000 Hub
$32.75
50 in stock
16
People watching this product now!
Description
2-4-803 End Yoke — 1310 series, 2.000″ hub dia | 2.560″ CJ-to-end | 1.62 bore. Premium replacement, spline-specific fit. Count splines before ordering.
Full Description
The 2-4-803 end yoke slides onto the axle or transfer case output shaft and holds the u-joint cross at the end of the driveshaft. It's a spline-specific fit for 1310 series applications — the spline count determines engagement, the hub diameter determines outer clearance, and the series determines which u-joint cross the ears accept.
2-4-803 End Yoke — Spline Specs & 1310 Series Fitment
The 1310 series covers light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The 2-4-803 end yoke specs: 2.000" hub dia | 2.560" CJ-to-end | 1.62 bore. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 2-4-803 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 1310 — light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Hub dia: 2.000" — outer dimension, verify clearance
- CJ-to-end: 2.560" — positions u-joint relative to axle flange
- Bore: 1.62
- Brand: UDS
Specifications
- SKU: 2-4-803
- Brand: UDS
- Series: 1310
- Hub Dia: 2.000"
- CJ to End: 2.560"
- Through Hole: 1.62
Additional information
| Cj to end | 2.560 |
|---|---|
| Hub dia | 2.000 |
| Partn number | 2-4-803 |
| Series | 1310 |
| Bore dia | 1.375 |
| Bore type | round |
| Keyway | EAR-0.38 |
| Through hole | 1.62 |
