1426-17 – Weld Yokes – 1100 Series – Butt Dia 1.625″ – Tube Dia Wall 1.750X0.065

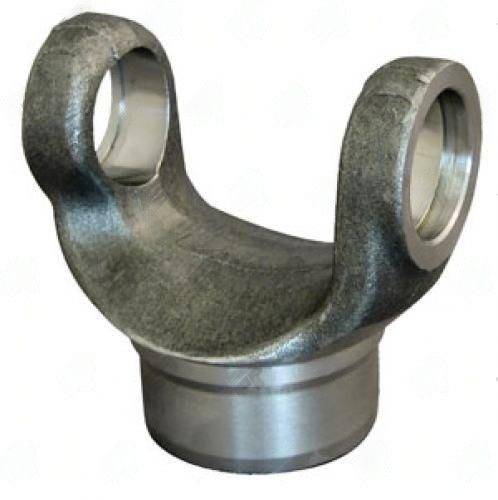

1426-17 Weld Yoke -- 1100 Series, 1.625" Butt Diameter

The 1426-17 is a precision weld yoke designed for 1100 series driveshafts. With a butt diameter of 1.625" and tube compatibility of 1.750X0.065, this component integrates directly into custom or OEM-spec propshaft builds. The heat-treated steel body ensures long service life in demanding drivetrain environments.

Dimensional Specifications

Series Compatibility

The 1100 series u-joint interface (cap diameter compact) makes this yoke suitable for light passenger car applications. When pairing this weld yoke with a u-joint, verify that both components share the same series designation to ensure proper cap pocket engagement and retention clip compatibility.

Tube Fitment

This yoke is manufactured to accept tubing with an outside diameter of 1.750" and a wall thickness of 0.065". Before welding, confirm that the tube OD matches the butt bore precisely. A gap exceeding 0.005" between tube and yoke bore can introduce weld porosity and reduce joint fatigue life. Use a V-groove or fillet weld with full penetration; partial welds are not acceptable for rotating driveshaft components.

Material & Finish

Heat-treated steel construction delivers the torsional rigidity required for heavy-duty propshaft applications, resisting deflection under load.

• Material: STEEL
• Weld prep: machined to close tolerance for consistent gap
• Balance: suitable for dynamic balancing post-weld
• Surface: raw machined; paint or coat as required for corrosion protection

Installation Notes

Align the yoke ears parallel to the mating yoke ears before tacking. Weld in a balanced sequence (opposing passes) to minimize heat distortion. After welding, re-check runout -- total indicator reading (TIR) should be under 0.005" at the u-joint seat. Dynamic balance the completed assembly to OEM specifications before installation.
