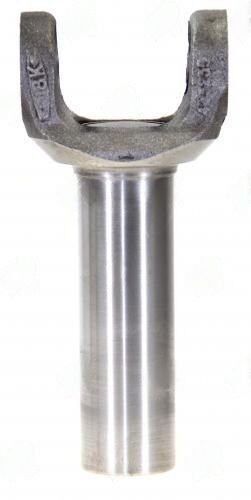

1403-10 – Transmission Yokes – 1100 Series – 10 X 1.000 Splines – 1.298″ Hub Dia

Spline count, shaft diameter, series, and center-to-end length -- all four have to match for a transmission yoke to fit correctly. The 1403-10 is spec'd for this specific application.

1403-10 Transmission Yoke -- 1100 Series Specs

The 1100 series is the standard for light PTO and agricultural drive applications.

Specs on the 1403-10 transmission yoke: 10 X 1.000 spline | 1.298" hub | 5.500" CJ-to-end. Compatible with: Capri. Cross-reference spline count and shaft diameter -- not all 1100 series transmissions use the same output spline.

After a transmission rebuild or swap, the tailshaft spline count can change. Count the splines on your output shaft before ordering.

Key Features

• Series: 1100 -- light PTO and agricultural drive applications
• Spline: 10 X 1.000 -- must match transmission tailshaft exactly
• Hub dia: 1.298" -- determines spline engagement depth on tailshaft
• CJ-to-end: 5.500" -- factors into driveshaft working length
• Compatible with: Capri

Specifications

• SKU: 1403-10
• Brand: UDS
• Series: 1100
• Spline Count x Dia: 10 X 1.000
• Hub Dia: 1.298"
• CJ to End: 5.500"
• Notes: Capri
