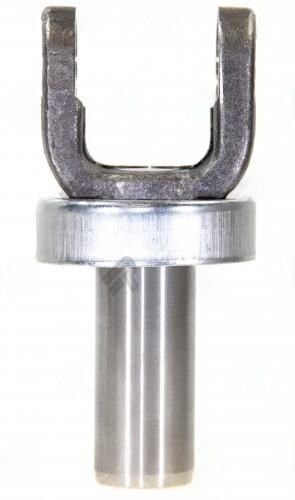

1303-41 – Transmission Yokes – 21 X 1.100 Splines – 1351-20 Series – 1.495″ Hub Dia
$90.31
10
People watching this product now!
Description
Transmission yoke 1303-41, 1351-20. 21 X 1.100 spline | 1.495″ hub | 6.125″ CJ-to-end. Spline and series must match gearbox output shaft.
Full Description
The 1303-41 transmission yoke is splined to the gearbox output shaft. It's the fixed end of the driveshaft's front connection -- and it carries the u-joint cross.
1303-41 Transmission Yoke -- Fitment & Dimensions
The 1303-41 transmission yoke: 21 X 1.100 spline | 1.495" hub | 6.125" CJ-to-end. Compatible with: Toyota Car and Truck.
Spline engagement has to be full depth -- partial engagement will damage the output shaft and cause vibration. Match spline count and shaft diameter exactly.
Key Features
- Series: 1351-20 -- application-specific drivetrain
- Spline: 21 X 1.100 -- must match transmission tailshaft exactly
- Hub dia: 1.495" -- determines spline engagement depth on tailshaft
- CJ-to-end: 6.125" -- factors into driveshaft working length
- Compatible with: Toyota Car and Truck
Specifications
- SKU: 1303-41
- Brand: UDS
- Series: 1351-20
- Spline Count x Dia: 21 X 1.100
- Hub Dia: 1.495"
- CJ to End: 6.125"
- Notes: Toyota Car and Truck
Additional information
| Center u joint to end |
6.125 |
|---|---|
| Counter bore dia |
0 |
| Hub dia |
1.495 |
| Notes |
Toyota Car and Truck |
| Partn number |
1303-41 |
| Series |
1351-20 |
| Splines count dia |
21 X 1.100 |
