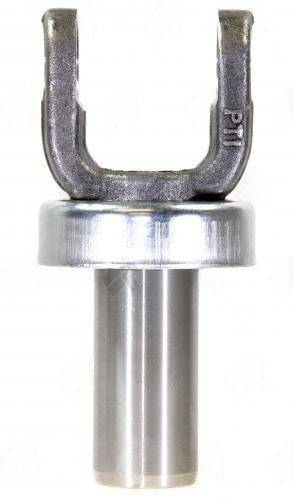

1303-23 – Transmission Yokes – 1351-20 Series – 23 X 1.200 Splines – 1.575″ Hub Dia
$90.31
10 People watching this product now!
Description
1303-23 transmission yoke, 1351-20 series. 23 X 1.200 spline | 1.575″ hub | 6.125″ CJ-to-end. Splined tailshaft fit — verify count and series.
Full Description
If there's clunk at takeoff or a vibration that shows up right at the transmission bellhousing, the transmission yoke is the first thing to check. The 1303-23 is the direct replacement.
1303-23 Transmission Yoke -- 1351-20 Series Specs
The 1303-23 transmission yoke specs: 23 X 1.200 spline | 1.575" hub | 6.125" CJ-to-end. Compatible with: Toyota Car and Truck / Typically automatic trans. Verify spline count against your tailshaft before ordering.
Hub diameter determines how far the yoke can travel on the tailshaft -- too short and the splines don't fully engage; too long and the yoke contacts the tailshaft bearing retainer.
Key Features
- Series: 1351-20 -- application-specific drivetrain
- Spline: 23 X 1.200 -- must match transmission tailshaft exactly
- Hub dia: 1.575" -- determines spline engagement depth on tailshaft
- CJ-to-end: 6.125" -- factors into driveshaft working length
- Compatible with: Toyota Car and Truck / Typically automatic trans
Specifications
- SKU: 1303-23
- Brand: UDS
- Series: 1351-20
- Spline Count x Dia: 23 X 1.200
- Hub Dia: 1.575"
- CJ to End: 6.125"
- Notes: Toyota Car and Truck / Typically automatic trans
Additional information
| Center u joint to end | 6.125 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.575 |
| Notes | Toyota Car and Truck / Typically automatic trans |
| Partn number | 1303-23 |
| Series | 1351-20 |
| Splines count dia | 23 X 1.200 |
