1254-683 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.344″ – End To Weld 6.625
$89.09
19 People watching this product now!
Description

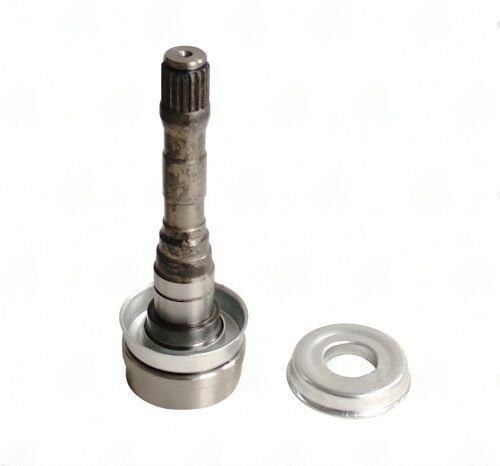

1254-683 midshaft stub. 19 X 0.850 spline | 775″ spline length | 2.344″ butt dia | 6.625″ end-to-weld | fits 2.500 tube. Verify spline count and butt diameter — solid tube-fit construction.
Full Description
The 1254-683 midshaft stub -- splined one end for the transmission or T-case, welded or pressed into the driveshaft tube at the other. One spec, no substitution.
1254-683 Stub Shaft Specifications
1254-683 midshaft stub -- 19 X 0.850 spline | 775" spline length | 2.344" butt dia | 6.625" end-to-weld | fits 2.500 tube. use it with: 2252-682.
Bearing diameter determines which center support bearing race this stub is compatible with -- if you're replacing the stub, verify the bearing ID matches your CSB.
Key Features
- Spline: 19 X 0.850 -- verify against transmission or T-case output shaft
- Spline length: 775" -- full engagement required
- Butt dia: 2.344" -- seats inside driveshaft tube, must match tube ID
- End-to-weld: 6.625" -- length consumed in total driveshaft assembly
- Tube compatibility: 2.500 -- designed for this tube specification
- Bearing dia: 1.181" -- matches center support bearing inner race
- Note: use it with: 2252-682
Specifications
- SKU: 1254-683
- Brand: UDS
- Spline Count x Dia: 19 X 0.850
- Spline Length: 775"
- Butt Dia: 2.344"
- End to Weld: 6.625"
- Tube Fit: 2.500
- Bearing Dia: 1.181"
- Notes: use it with: 2252-682
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.344 |
| End to weld | 6.625 |
| Notes | use it with: 2252-682 |
| Partn number | 1254-683 |
| Splines count dia | 19 X 0.850 |
| Splines length | 775 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | CVJ |
