Brand:

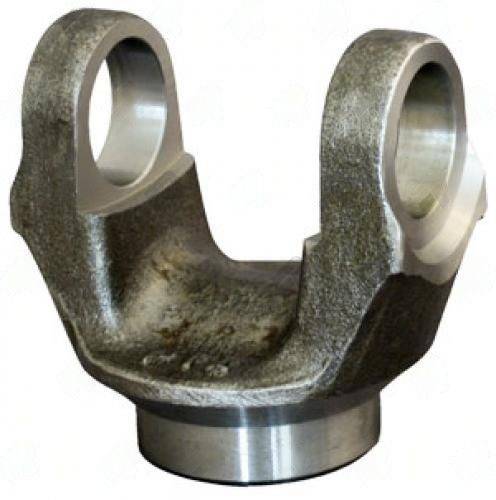

1226-17 Weld Tube Yoke 1251 Series Fits: 1.775 X 0.065
$20.37
1 in stock
16 People watching this product now!
Description
1226-17 Weld Yoke — Steel, 1251 series, fits 1.775X.0.65 tube | 1.667″ butt dia | 1.750″” center-to-weld. Proven weld-on replacement. Match tube OD before ordering.
Full Description
The 1226-17 weld yoke is a steel weld-on yoke for 1251 series driveshaft applications. It attaches permanently to the tube via weld and carries the u-joint cross at the outboard end of the shaft. Center-to-weld dimension and butt diameter are the two numbers that matter most here.
1226-17 Weld Yoke — Tube Fit & Steel Specs
The 1226-17 weld yoke specs: fits 1.775X.0.65 tube | 1.667" butt dia | 1.750"" center-to-weld. Steel construction — DOM-compatible, full-penetration weld ready, standard for high-torque driveshaft applications. Center-to-weld dimension is critical for total shaft length calculations — it's the distance consumed by this yoke on that end of the tube.
Measure your tube OD before cutting and welding the 1226-17 weld yoke. Tack it in place first, check runout is within 0.005" before committing to full weld. A slight off-angle tack that gets welded solid will show up as vibration at 50+ mph that no balancer can fully correct.
Key Features
- Series: 1251 — application-specific
- Tube fit: 1.775X.0.65 — butt diameter is machined specifically for this OD
- Butt dia: 1.667" — must match tube OD precisely for a centered weld joint
- Center-to-weld: 1.750"" — factors into total shaft length calculation
- Steel — DOM-compatible, full-penetration weld, standard drivetrain spec
- Brand: UDS
Specifications
- SKU: 1226-17
- Brand: UDS
- Series: 1251
- Material: Steel
- Tube Fit: 1.775X.0.65
- Butt Dia: 1.667"
- Center to Weld: 1.750""
Additional information
| Butt dia | 1.667 |
|---|---|
| Center u j to weld | 1.750″ |
| Material | STEEL |
| Partn number | 1226-17 |
| Series | 1251 |
| Tube dia wall | 1.775X.0.65 |
| Brand | UDS |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weld Yokes (191) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 3.810" Center u j to weld 2.969 Material STEEL Partn number 100-28-17 Series SPL90/100 Tube dia wall 4.000X0.095 Brand SPICER | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.321 Center u j to weld 1.688 Material STEEL Partn number 110679 Series 1310 Tube dia wall 2.500X0.095 Brand UDS Notes Butt Diameter 58.95 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 1.571 Center u j to weld 1.625 Material STEEL Notes INFINITI FRONT SHAFT Partn number 1126-1711 Series 9951-22 Tube dia wall 1.750X0.095 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

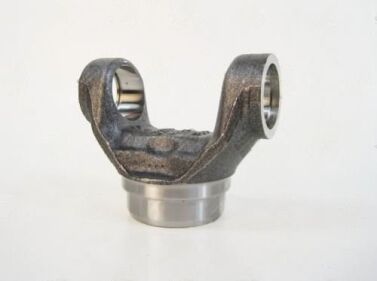

| | Butt dia 1.844 Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-20 Series 1251 Tube dia wall 2.000X0.083 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
