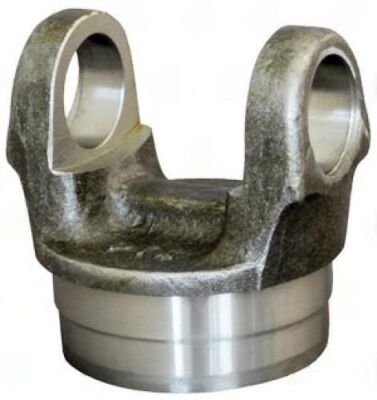

2326-26 – Weld Yokes – 2351-20 Series – Butt Dia 2.435″ – Tube Dia Wall 2.560×0.065

The 2326-26 weld yoke is the weld-on tube-end connection for 2351-20 series driveshaft assemblies. It slides over or butts up to the driveshaft tube and welds in place, forming the permanent u-joint cradle at that end of the shaft. Butt diameter must match your tube OD precisely — a loose fit produces an off-center weld joint that no amount of balancing will fix.

2326-26 Weld Yoke — Tube Fit & Steel Specs

The 2326-26 weld yoke specs: fits 2.560x0.065 tube | 2.435" butt dia | 1.750"" center-to-weld. TOYOTA. Steel construction — DOM-compatible, full-penetration weld ready, standard for high-torque driveshaft applications. Center-to-weld dimension is critical for total shaft length calculations — it's the distance consumed by this yoke on that end of the tube.

Measure your tube OD before cutting and welding the 2326-26 weld yoke. Tack it in place first, check runout is within 0.005" before committing to full weld. A slight off-angle tack that gets welded solid will show up as vibration at 50+ mph that no balancer can fully correct.

Key Features

• Series: 2351-20 — application-specific
• Tube fit: 2.560x0.065 — butt diameter is machined specifically for this OD
• Butt dia: 2.435" — must match tube OD precisely for a centered weld joint
• Center-to-weld: 1.750"" — factors into total shaft length calculation
• Steel — DOM-compatible, full-penetration weld, standard drivetrain spec
• Brand: UDS
• Note: TOYOTA

Specifications

• SKU: 2326-26
• Brand: UDS
• Series: 2351-20
• Material: Steel
• Tube Fit: 2.560x0.065
• Butt Dia: 2.435"
• Center to Weld: 1.750""
• Notes: TOYOTA
